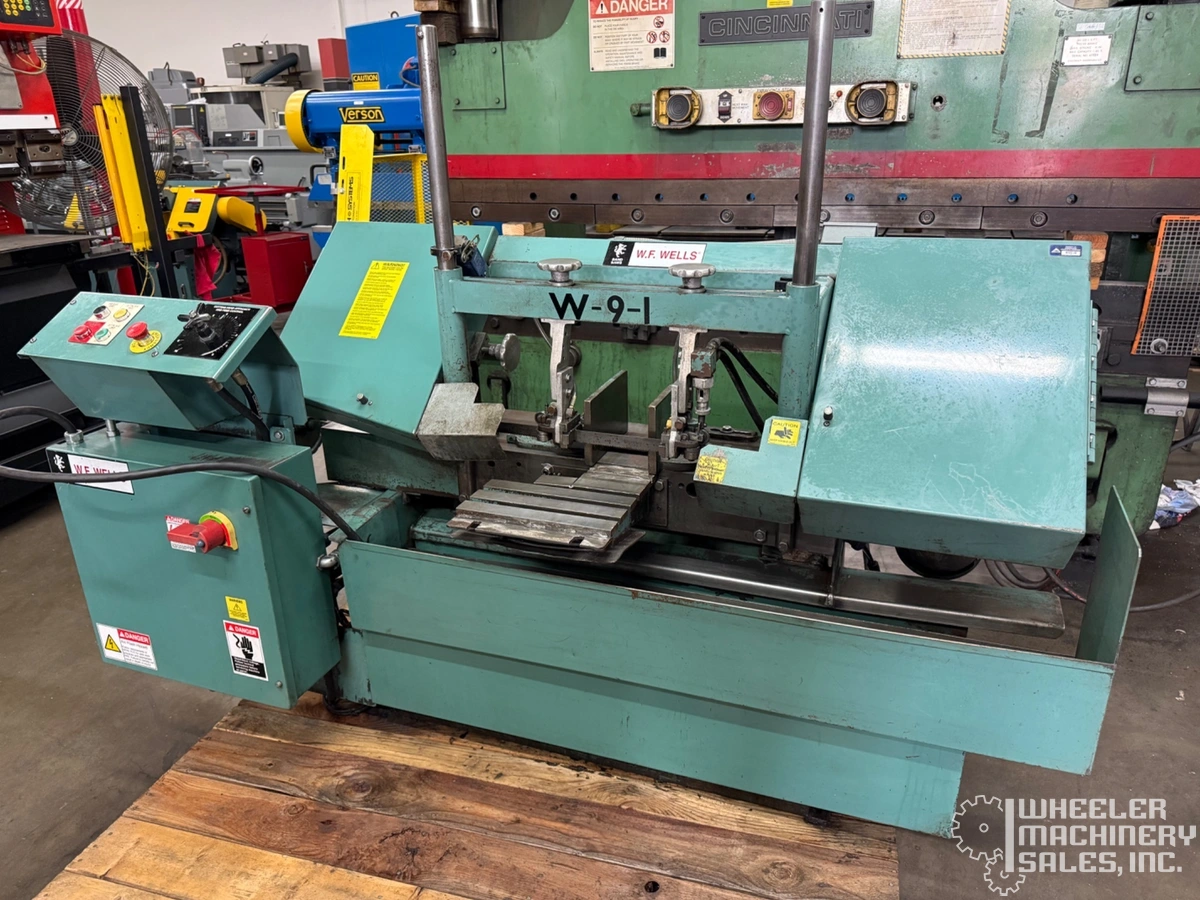

W.F. Wells W-9-1 Horizontal Band Saw #7631 #1

W.F. Wells W-9-1 Horizontal Band Saw #7631 #1

SPECIFICATIONS:

Capacity:
Round:
@ 90°: 9″
@ 45°: 8″

Rectangular:
@ 90°: 9″ x 17″
@ 45°: 9″ x 8″

Weight Capacity: 2,000 lbs.
Blade Speed: 70 – 380 FPM
Blade Size: 138″ x 1″ x .035″
Bandwheel Size: 14 1/2″
Sawing Force: 30 – 120 lbs.
Work Height: 26″
Motor: 3 HP / 208v, 230v, 460v / 3ph OR 1.5 HP / 230v / 1ph

Standard Features:
1″ Bi-Metal, High Production Blade
Manually Controlled Blade Tension
45° Swiveling Vise
Semi-Automatic Operation
Built-In Coolant System
Console Controlled Blade Speed
Blade Powered Cleaning Brush
All Safety Guards

Mechanical Specifications:
Dimensions: 81″ x 43″ x 63″ H
Shipping Weight: approx. 990 lbs.
