Blanchard 11-16 Vertical Rotary Surface Grinder 16" x 11" w/ Special Grinding Head #7608 #2
Have one to sell?
ConditionUsed
1 available
Blanchard 11-16 vertical rotary surface grinder, 16" x 11", equipped with a special grinding head, electro magnetic chuck, variable chuck control, and coolant system. Max weight capacity 2,000 lbs, wheel speed 1,200 RPM. Used condition, approx. weight 5,500 lbs.
Blanchard 11-16 Vertical Rotary Surface Grinder 16" x 11" w/ Special Grinding Head #7608 #2
SPECIFICATIONS:
CHUCK DIAMETER: 16"
SWING INSIDE GUARDS: 20"
HEIGHT UNDER NEW WHEEL: 7"
MAX. WEIGHT OF WORK LOAD ON CHUCK: 2,000 LBS
GRINDING WHEEL DIAMETER: 11"
WHEEL SPEED: 1,200 RPM
CHUCK SPEEDS: 15 TO 64 RPM
INF. VARIABLE POWER DOWNFEED: 0.003" TO .070 IPM
APPROX. WEIGHT: 5,500 LBS
EQUIPPED WITH:
SPECIAL GRINDING HEAD
16" ELECTRO MAGNETIC CHUCK

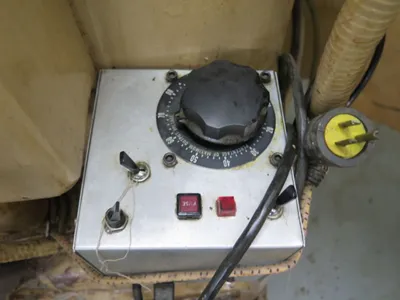

VARIABLE CHUCK CONTROL
COOLANT SYSTEM
