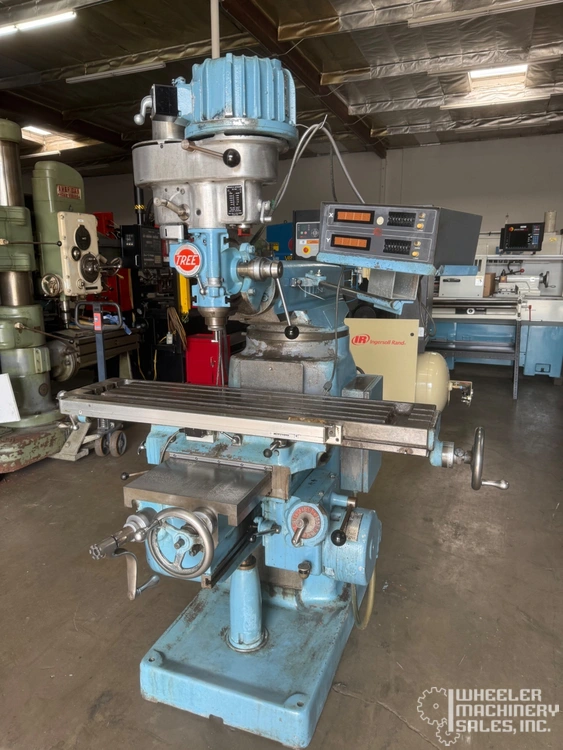

Tree 2UVRC Vertical Mill 10 1/2" x 48" #7580 #1

Tree 2UVRC Vertical Mill 10 1/2" x 48" #7580 #1

SPECIFICATIONS:
Table Size: 10 1/2" x 48"
Table Longitudinal Travel: 30"
Saddle Cross Travel: 11"
Vertical Knee Travel: 17.5"
Spindle Speeds (Variable): 60- 3,300 RPM
Spindle Nose: Tree Collet
Spindle Quill Travel: 4"
Spindle Quill Feeds (Variable): 0.0015″ to 0.008″
Table Feeds (5): 3/4- 1 3/8- 2 3/8- 4- 7 IPM
Motor: 1 1/2 HP
Dimensions (L x W x H): 60″ x 64″ x 78″
Weight: 2,200 Lbs.

EQUIPPED WITH:
Mitutoyo Digital Readout System
Table Power Feed (Geared)
Cross Saddle Power Feed (Geared)
Knee Power Feed
Box Ways
One Shot Lube System
Work Lamp
