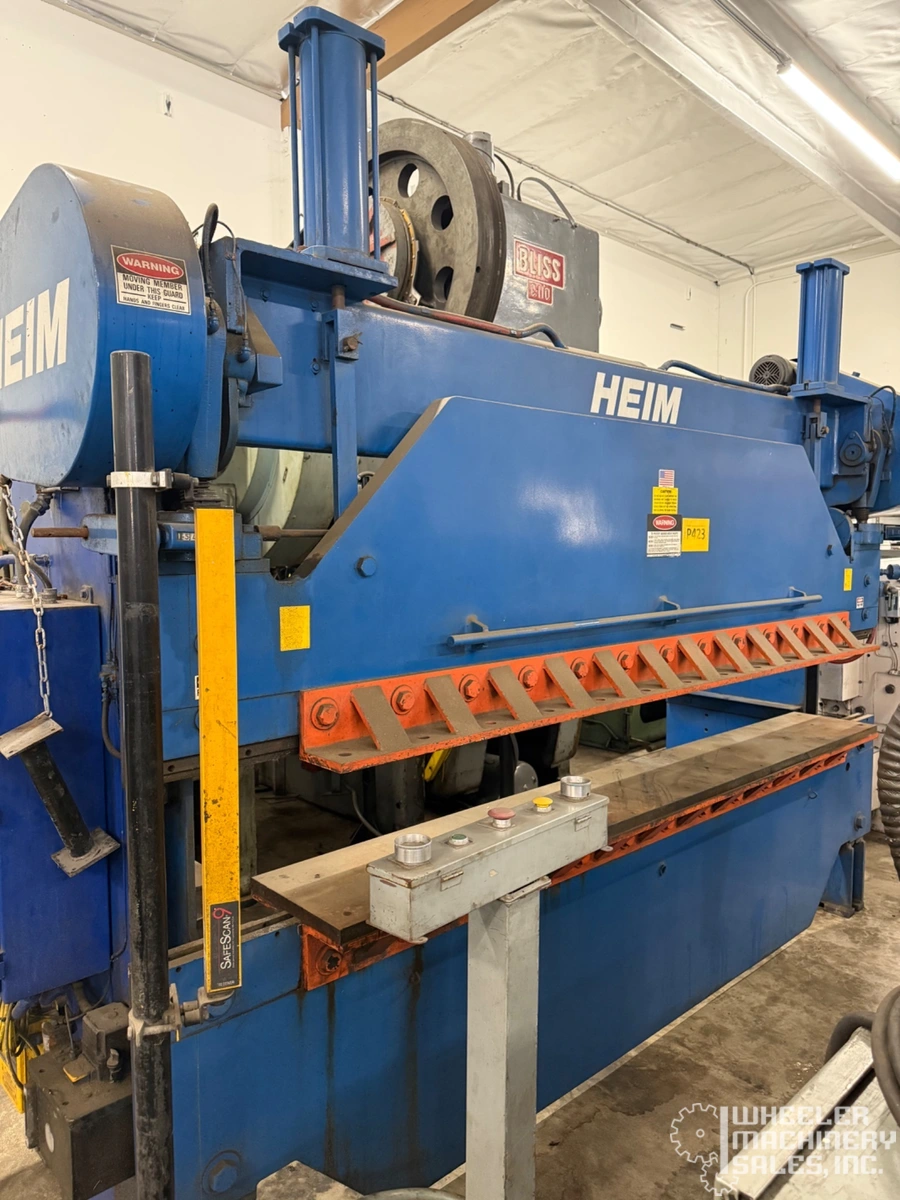

Heim 45-10 Flanged Bed Mechanical Press Brake #7565
Have one to sell?
ConditionUsed
1 available
Explore the Heim 45-10 Flanged Bed Press Brake, designed for precision and power with features such as a 45-ton capacity, 10-foot bed, 2 HP motor, and PLC control. Ideal for enhancing your production line with its robust build and reliable performance.
GENERAL SPECIFICATIONS:
Removable Flanged Bed and Ram
Tonnage, Near Bottom: 45
Tonnage, Mid Stroke: 30
Bed Size: 14" x 126"
Ram Size: 12" x 126"
Distance Between Housings: 110"
Stroke: 2"
Shut Height: 12"
Ram Adjustment: 2-1/2"
Strokes Per Minute: 40
EQUIPPED WITH:
2 HP Motor
Pedestal Control w/Dual Palm Buttons
PLC Control
Air Clutch
Power Ram Adjustment
(2) Air Counterbalances
Bijur Automatic Lubrication
Holes On Flanged Bed and Ram On 18" Centers
Approximate Weight: 7500 Lbs.
