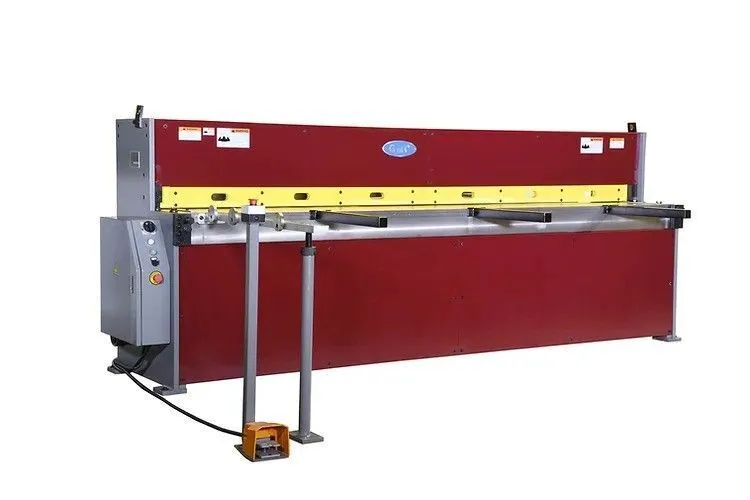

NEW GMC HS-1014MD 10' x 14 Ga. Hydraulic Metal Shear - Shearing Machines

Taiwan machines
ISO 9001 certified
HD all steel construction for maximum rigidity
German logic quiet Rexroth hydraulic system
Adjustable stroke from 16-20 strokes per minute
60” long squaring arm with inch / mm scale
Spring hold-downs
High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
2-edge indexable upper blade and 2-edge indexable bottom blade
Full length with full view finger guard
Front supports and (2) side gauges
Safety type foot pedal control
Jog, single continuous auto operation modes
One year warranty for parts

Standard Equipment:
26” manual back gauge with inch/metric dual scale & one side operated hand wheel
60” long squaring arm with inch / mm scale
2 each 24” front support arms
2 each 14” Side gauges with inlaid inch/metric dual scale
Spring independent hold-downs
Full length finger guard
Removable safety foot

This machine is compatible with a phase converter. Please note that the phase converter must
be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is
received and the phase converter is installed by us, it will be ready for use. For more
information or if you have any further questions or need assistance, feel free to contact us.

Cutting capacity:

mild steel

stainless steel

min. thickness

soft aluminum, tensile 28,000PSI

10’ x 14Ga.

10’ x 18 Ga

26Ga.

10Ga.

Blade length

10’1”

Strokes per minute adjustable

14-18

Throat depth

16”

Worktable height

30-1/2”

Front support arm

24”

Back gauge, manual

26” manual

blade rake angle

1.5 degree

oil tank cap.

20gal

Main motor

5-1/2 HP

220V/440V, 3PHASE

Machine weight

5,200 LBS

Machine dimensions

139”X35”52”
