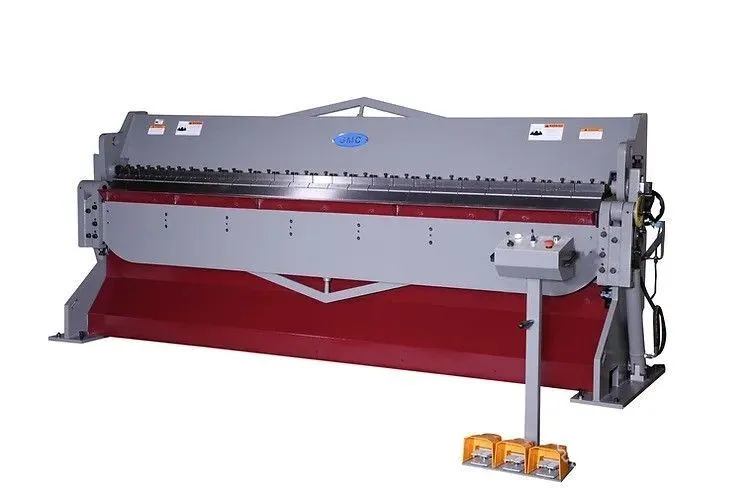

New GMC HBB-1014, 10 ft Sheet Metal Brake, 14 Gauge Mild Steel

Description

This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.

Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.

Max Bending Length:

10'

Bending Capacity:

Mild Steel(hot roll), 60k PSI

Stainless Steel 85k PSI

Soft aluminum 28k PSI

14 Ga.

16 Ga.

10Ga.

Open hem max thickness x 10’

Close hem max thickness x 10

22Ga

28Ga

Bend Degree:

135

Max. Box Depth:

153mm=6.02”

Large Beam Opening:

3"

Manual Back Gauge:

26”

Oil Tank Gal.

17 Gal

Hydraulic Oil:

Shell #68 or equivalent

Main Motor

5 HP 3 Phase

Prewired: 220VAC 20A

Optional: 440VAC 10A

Weight

6,850 lbs.

Shipping Weight:

6,950 lbs.

Overall Dimensions

142" x 46" x 66"

Shipping Dimensions:

153” x 41” x 67”
