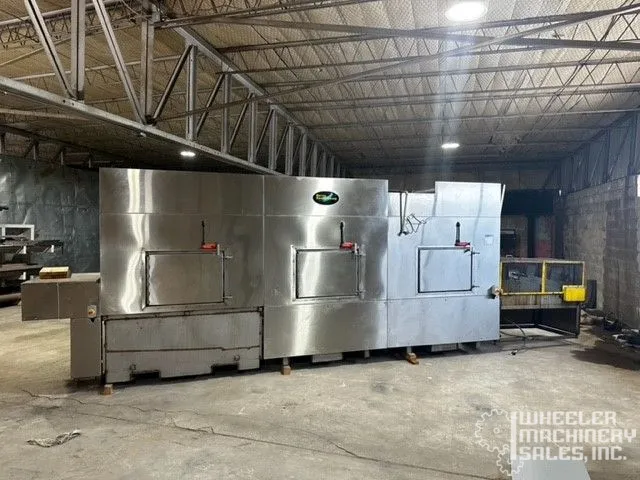

2014 Better Engineering C-24 S4 3 Stage Pass Thru 24" Parts Washer #7409

2014 Better Engineering C-24 S4/SB-S3-DH 3 Stage Pass Thru 24" Parts Washer #7409

SPECIFICATIONS:
24" Wide Belt
4" Part Heigh (Plenty of Room to modify, up to 2' feet.)
3 Stage Wash, Rinse, Blow-Off
66" Load
72" Wash 7.5HP Pump, Flitration,
Regenerative Blow-Off (SB-BlowOFF Plenum)
68" Rinse 5HP Rinse Pump
72" Blow-Off (10-HP Centrifugal Blower)
24" Unload

EQUIPPED WITH:
Mist Collector
In Line Filter 200 GPM
Steam Exhaust W/Drip Leg
Remote Control Box
Digital Level Detectors
Wash Module, Rinse Module, Sump Tank
7.5 HP Wash Pump
5 HP Rinse Pump
10 HP Centrifugal Blower 45 KW Electric Heat
Steam Heat
Chip Basket
1.5 GPM Oil Coalescer
Rinse To Wash Drain Pump
Sump Tank with Pump
1/2 HP Tank Mixer
Flow & Pressure Sensors
Steam Heat Pressure 55-57 PSI 850 lbs Per Hour

Electric 460 Volts 3 phase 60 HZ 108 FLA
