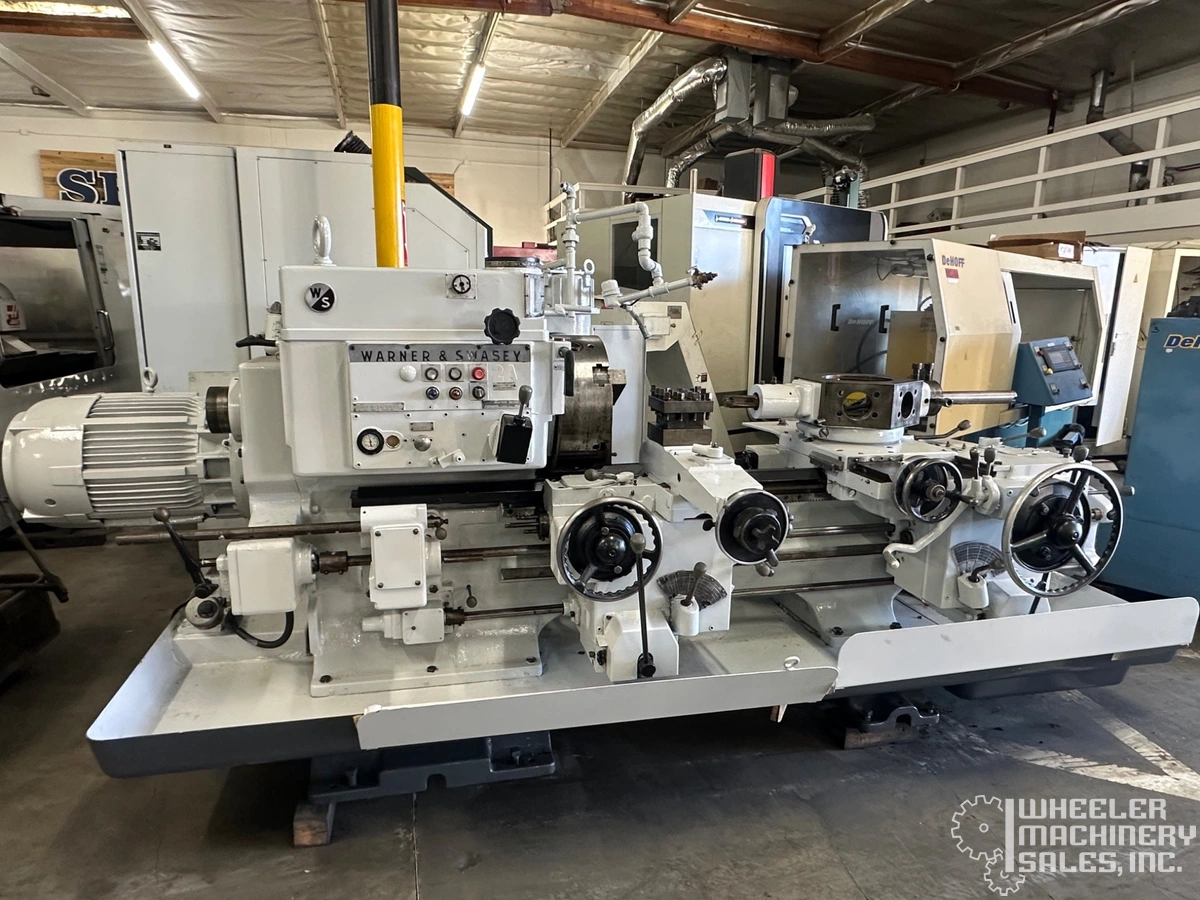

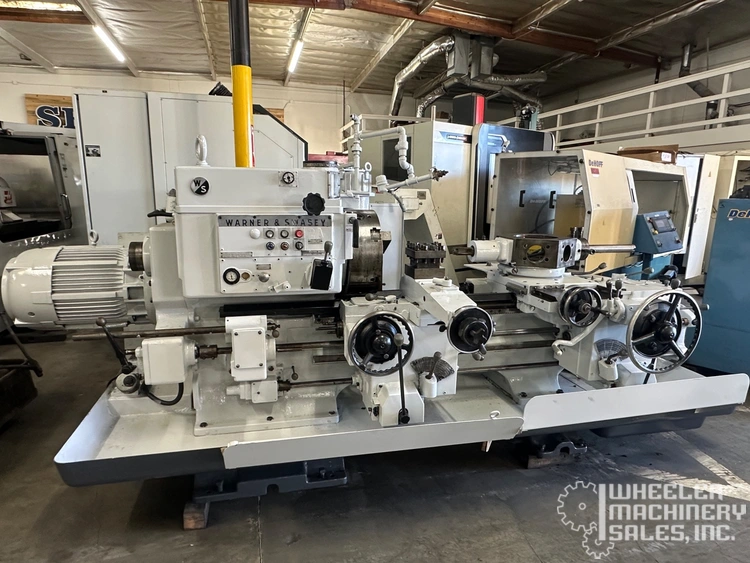

Warner & Swasey 2A Square Head Saddle Type Turret Lathe w/ 3-3/4" Hole #7356 #2

Warner & Swasey 2A Square Head Saddle Type Turret Lathe w/ 3-3/4" Hole #7356 #2

SPECIFICATIONS:

Warner & Swasey 2A - M3470 - Lot 69

Swing Over Bed Ways: 20-1/2"

Swing Over Cross Slide Carriage: 16"

Center Distance: 43"

Spindle Hole: 3-3/4"

Spindle Nose: A - 11

Spindle Speeds: 32 To 1117 RPM

Chuck Size: 18" 3-Jaw

Feeds Cross: .0025 To .082 I.P.R.

Feeds Long: .005 To .167 I.P.R.

Main Motor: 20/40 HP - 440 Volts

Weight: 12,500 Lbs.

Floor Space: 144" L. X 83" W.

Machine Height: 64"

Coolant: Yes

Tool Post 4 Way On Front Carriages: Yes

Rapid Traverse Front & Rear Carriages: Yes

Fixed Rear Turret: Yes
