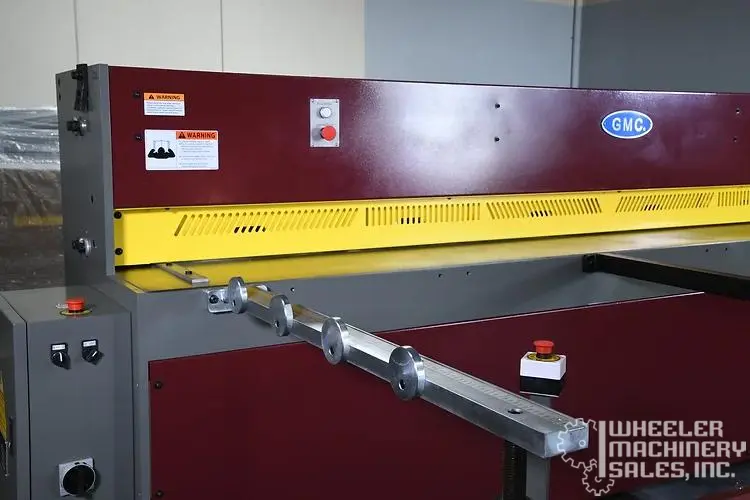

New GMC 10' x 14 Ga. Mechanical Shear - Shearing Machine EPS-1014M

New GMC 10' x 14 Ga. Mechanical Shear - Shearing Machine SKU: EPS-1014M

Shop our 10 foot mechanical shears that are capable of cutting up to 14 gauge mild steel and 18 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop.

ISO 9001 certified

American design and Taiwan quality machine

HD all steel construction for maximum rigidity

Precision driven gearbox

Full length 26 strokes per minute

60” long squaring arm with inch / mm scale

spring hold-downs

high grade carbon/chrome alloy steel blades and hardened to 62 hrc,

2-edge indexable upper blade and 4-edge indexable bottom blade

Full length with full view finger guard

Front supports and (2) side gauges

Safety type foot pedal control

Jog, single continuous auto operation modes

One year warranty for parts

26” manual back gauge with one side operated handwheel.

60” long squaring arm with inch / mm scale, mounted on right side of the table

2 each 24” front support arms

full length finger guard

Removable safety foot pedal control

One set of upper & lower blades

Cutting Capacity

Mild Steel

Stainless Steel

soft aluminum

min. thickness

10' x 14Ga.

10' x 18Ga.

10' x 10Ga.

26Ga.

Blade Lenght10'1"Strokes per minute26Worktable height30-1/2"Front support arm24"Back gauge

26" Manual Back gauge

Blade Rake Angle2.0 DegreeMain Motor

7 1/2 HP, 220V/25A - 440V/15A, 3 Phase

Machine weight7,280 LBS Machine dimensions147" x 57" x 53"
