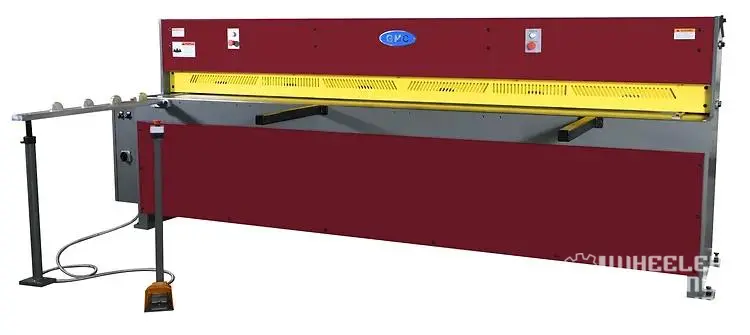

New GMC 8' x 10 Ga. Mechanical Shear - Shearing Machines EPS-0810M

New GMC 8' x 10 Ga. Mechanical Shear - Shearing Machines EPS-0810M

ISO 9001 certified

American design and Taiwan quality machine

HD all steel construction for maximum rigidity

Precision driven gearbox

Full length 30 strokes per minute

60” long squaring arm with inch / mm scale

spring hold-downs

high grade carbon/chrome alloy steel blades and hardened to 62 hrc,

2-edge indexable upper blade and 4-edge indexable bottom blade

Full length with full view finger guard

Front supports and (2) side gauges

Safety type foot pedal control

Jog, single continuous auto operation modes

One year warranty for parts

26” manual back gauge with one side handwheel

60” long squaring arm with inch / mm scale, mounted on right side of the table

2 each 24” front support arms

full length finger guard

Removable safety foot pedal control

One set of upper & lower blades

Cutting Capacity

Mild Steel - HRS (tensile 60,000 PSI)

Stainless Steel (tensile 85,000 PSI)

Soft Aluminum (tensile 28,000 PSI)

min. thickness

8' x 10Ga.

8' x 14Ga.

8' x 1/4"

22Ga.

Blade Lenght 98"

Strokes per minute 26

Worktable height 32"

Front support arm 36"

Back gauge

26" Manual Back gauge

Blade Rake Angle

2.5 Degree

Main Motor

7 1/2HP, 3 Phase 25A

Prewired: 220VAC

(15A/440VAC optional)

Machine weight

Shipping weight

6,650 lbs.

6,750 lbs.

Machine dimensions

Shipping dimensions

124" x 43" x 68"

126" x 43" x 67"
