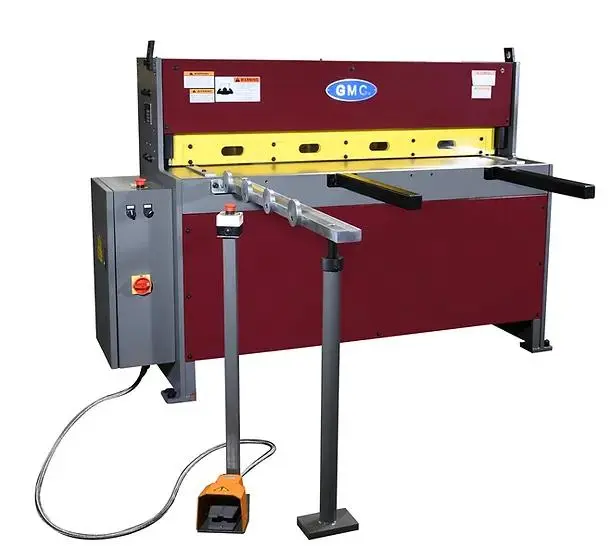

4 Foot Mechanical Shear - 12Ga. Electric Shearing Machine
SKU: EPS-0412M
Shop our 4 foot mechanical shears that are capable of cutting up to 12 gauge mild steel and 16 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop.
ISO 9001 certified
American design and Taiwan quality machine
HD all steel construction for maximum rigidity
Precision driven gearbox
Full length 30 strokes per minute
60” long squaring arm with inch / mm scale
spring hold-downs
high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
2-edge indexable upper blade and 4-edge indexable bottom blade
Full length with full view finger guard
Front supports and (2) side gauges
Safety type foot pedal control
Jog, single continuous auto operation modes
One year warranty for parts
26” manual back gauge with one side handwheel
60” long squaring arm with inch / mm scale, mounted on right side of the table
2 each 24” front support arms
full length finger guard
Removable safety foot pedal control
One set of upper & lower blades
Cutting Capacity
Mild Steel - HRS (tensile 60,000 PSI)
Stainless Steel (tensile 85,000 PSI)
Soft Aluminum (tensile 28,000 PSI)
Min thickness
4' x 12 Ga.
4' x 16 Ga.
4' x 8 Ga.
26 Ga.
Blade Length 52"
Strokes per minute 35
Worktable height 32"
Front support arm 36"
Go-to Back gauge
26" manual back gauge
Blade Rake Angle
2 Degree
Main Motor
4HP, 3 Phase 15 AMP
Prewired: 220VAC
(7A/440VAC optional)
Machine weight
Shipping weight
2,120 LBS
2,133 LBS
Machine dimensions
Shipping dimensions
72" x 42" x 67"
80" x 35" x 61"
