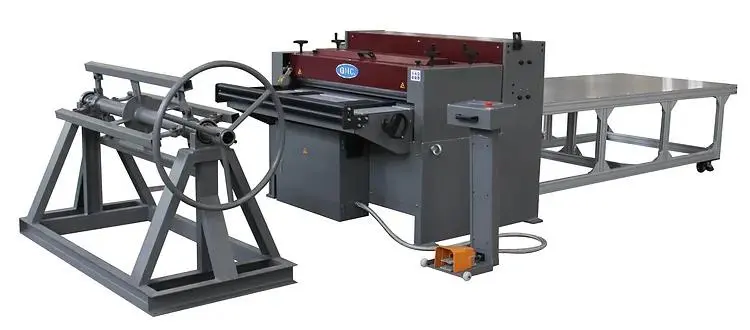

New GMC Gang Type Metal Powered Slitter with programmable cut to length PS-4816GT

GMC Gang Type Metal Powered Slitter with programmable cut to length

Model # PS-4816GT

48” x 16 Ga, Gang Type Metal Slitter, Powered Slitter, 220V,1 phase

with NC programmable cut to length, 5” touch screen

ISO 9001 certified

American design and Taiwan quality machine

Slit and cut to length in one unit

NC programmable cutting length, 100 job memory feature

Single cycle Mode-manual shearing with foot pedal when programmed length is reach for each cut.

Auto cycle mode-shearing will auto cycle the programmed cut lengths.

Easy removal of slitting blades for cut to length operations without slitting.

5” Omron touch screen

3-1/8” diameter shafts mounted in precision ball sealed bearings

Slitting blades are dual edged

Safety type foot pedal control

One year warranty for parts

Comes with 6 sets of slitting blades to slit max 7 trips

full length finger guard

Removable safety foot pedal control

One set of upper & lower shearing blades

10ft Outfeed table #FT-10, 121”x49”x32” LWH……………………………………. call for pricing

10ft Infeed table #FT-10 ( when purchase Powered Slitter # PS-4816GT itself )…… call for pricing

Decoiler #DC-4820-2T, 48” wide x 20” coil ID, 2Tons=4,500LBS max coil weight....... call for pricing

Slitting and shearing capacity: width x thickness

mild steel(hot roll) Tensile 60,000PSI

stainless steel & cold roll, tensile 85,000PSI

soft aluminum, tensile 28,000PSI

min. thickness

Max. slitting length

48”x16Ga

48”x20Ga

48”x12Ga

30Ga

20ft, NC programmable

Shearing blade length

50”

Shearing blade rake angle

2 degree

Infeed/outfeed table height

32”

Slitting blades

6 pairs

Slitting feed speed

Shearing stroke

57 FPM

35

Slitting capacity: Number of cuts / strips

16Ga mild steel

18Ga mild steel

20Ga mild steel

22Ga-24Ga mild steel

26Ga-30Ga mild steel

1 cut / 2 strips

2 cuts / 3 strips

3 cuts / 4 strips

4 cuts / 5 strips

6 cuts / 7 strips

Slitting motor

Shearing motor

3HP, 220V,1phase

3HP, 220V, 1phase

Amperage draw 25A

Decoiler specifications

Manually operated

For coil size 48” width, 20” coil ID,

Max coil weight 2T = 4,500LBS

Dimensions: 71”x32”x39-1/2”

Machine weight

Shipping weight

2,850LBS

2,950LBS

Machine dimensions LxWxH

Shipping dimensions LxWxH

68” x 63” x 48”

70” x 65” x 51”
