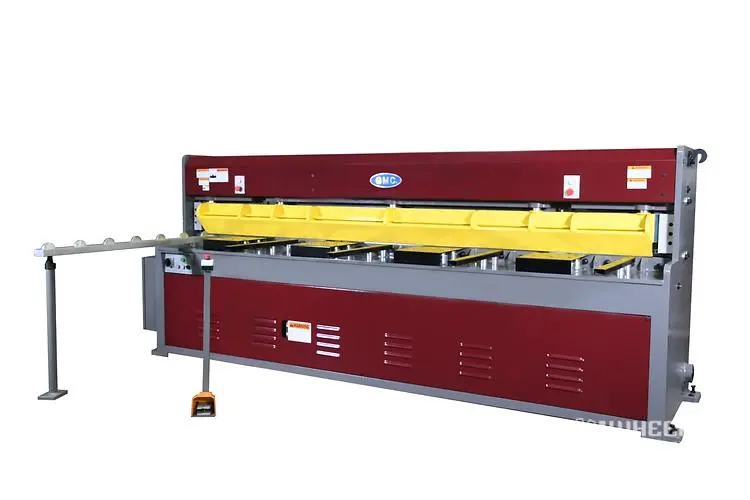

New GMC 10' x 10 Ga. Hydraulic Metal Shear - Shearing Machines HS-1010M

New GMC 10' x 10 Ga. Hydraulic Metal Shear - Shearing Machines HS-1010M

- ISO 9001 certified
- Taiwan machines
- HS-1010M comes with 24” manual back gauge, one side handwheel operate )
- adjustment 0.004” , inch/mm digital display
- Quick Change Blade Gap Adjustment (BGA), with gap dial
- Shadow line for accurate straight cutting
- 60” squaring arm with inlaid inch/metric dual scale
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Adjustable cutting length and stroke
- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened
- to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- One year industrial warranty for parts

- HS-1010M comes with 24” manual back gauge, one side handwheel operate )
- adjustment 0.004” , inch/mm digital display
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA)
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box

Safety fence for enclosure of the back side of the machine - Call for pricing

Cutting capacity:

Mild steel

Stainless steel

soft alumnium

min. thickness

10’ x 10 Ga.

10’ x 14 Ga.

10'x 1/4"

24 Ga

Blade length10' 1" = 121"Strokes per minute10-15 Worktable height34 1/2"Front support arm24"Back gauge

24" Manual B.G.

Blade rake angle2 degreeOil tank cap.26 GalMain Motor

10 HP 3 Phase

Prewired: 220V/35A
Optional: 440V/20A

Machine weight8,850 LBS Machine dimensions178" x 67" x 65"
