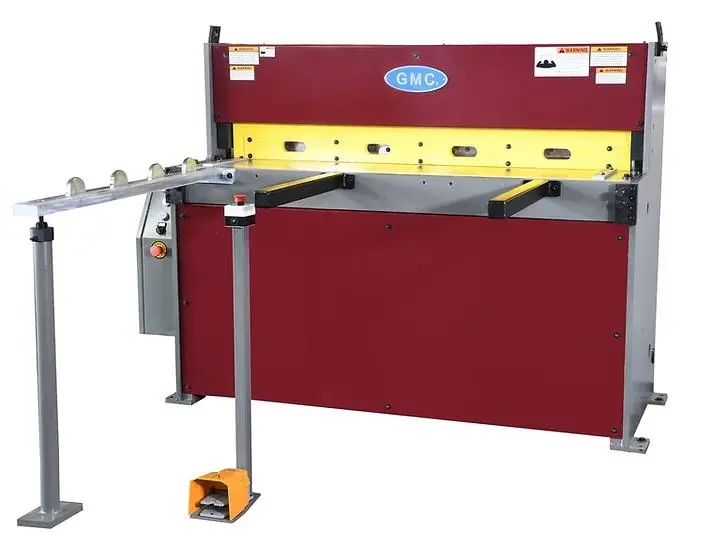

New GMC 4' x 10 Ga. Hydraulic Metal Shear | HS-0410MD SKU: HS-0410MD

New GMC 4' x 10 Ga. Hydraulic Metal Shear | HS-0410MD SKU: HS-0410MD

Taiwan machines

ISO 9001 certified

HD all steel construction for maximum rigidity

German logic quiet Rexroth hydraulic system

Adjustable stroke from 16-20 strokes per minute

60” long squaring arm with inch / mm scale

Spring hold-downs

High grade carbon/chrome alloy steel blades and hardened to 62 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade

Full length with full view finger guard

Front supports and (2) side gauges

Safety type foot pedal control

Jog, single continuous auto operation modes

One year warranty for parts

26” manual back gauge with inch/metric dual scale & one side operated hand wheel

60” long squaring arm with inch / mm scale

2 each 24” front support arms

2 each 14” Side gauges with inlaid inch/metric dual scale

Spring independent hold-downs

Full length finger guard

Removable safety foot pedal control

One set of blades

Cutting Capacity:

Mild Steel

Stainless Steel

Minimum Capacity

4' x 10Ga.

4' x 14Ga.

24 Ga.

Blade Length 52"

Strokes per minute adjustable 16-20

Throat depth 16"

Worktable height 30 1/2"

Front support arm 24"

Back gauge 26"

Blade Rake Angle 1.5 Degree

Oil Tank Capacity 10 Gal

Main Motor

5 1/2 HP

Prewired: 20A/220/3-Phase

Optional: 10A/440V 3-Phase

Machine Weight 3,050 lbs.

Machine Dimensions 68" x 35" x 52"
