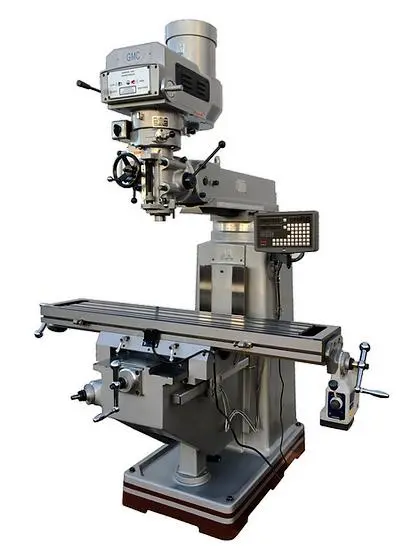

New GMC 10" x 54" Vertical Mill | Metal Milling Machine with 2-Axis DRO SKU: GMM-1054VPKG

New GMC 10" x 54" Vertical Mill | Metal Milling Machine with 2-Axis DRO SKU: GMM-1054VPKG

Our 10" x 54" metal milling machine aka vertical milling machines come fully equipped with a SINO digital readout and power feed. Our mill machines are rigid, made of “Meehanite” casting; hardened and grounded dovetail guideways. If you're looking to add a long lasting piece of equipment to your machine shop, this is it. These vertical mills are made to last and we provide parts and service to reduce or eliminate downtime.
Taiwan mill
“Meehanite” casting
Turcite “B” coating on X/Y ways like CNC mills
ISO 9001 certified
Mechanical variable spindle speeds from 70-4,300 rpm
Heavy duty 3 HP AC spindle motor, 3 phase (ideal for tapping jobs. Strongly recommend to take 3 phase mill with phase converter)
Heavy Duty high grade castings
Hardened & ground ways, square ways on knee and column
Hardened & ground table and Ground table T-slots
Precision ground ACME Leadscrews
Chromed ground quill ( spindle )
Chromed dials
Adjustable ways
Hand brake on mill head
Tilting & rotating head
Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution
One shot lube system
front and rear rubber chip guards, and (1) manual draw bar
Tool box kit and leveling pads
Prewired power source 220V 3-Phase (optional 440V , 3 phase)
One year industrial warranty for parts
Table Size
Table Load Capacity
10" x 54"
750 lbs.
X Axis Travel
X Travel with Power Feed
Y Axis Travel
Z Axis Travel
Spindle Taper Type
AC Spindle Motor
Variable Spindle Speeds
36 1/2"
33 1/2"
16"
16"
R8
3 HP, 220V/10A - 440V/5A
70-4,300 RPM
Quill (spindle) Diameter 3 3/8"
Quill (spindle) Travel 5"
Ram Travel
Table T-Slot Size
Head Swivel, R/H, L/H
18"
5/8" x 3 slots
90 degree
Net Weight 3,250 lbs.
SINO DRO (installed)
Table power feed X Axis
One shot lube
Draw bar (23")
Rubber way covers
Tool box
