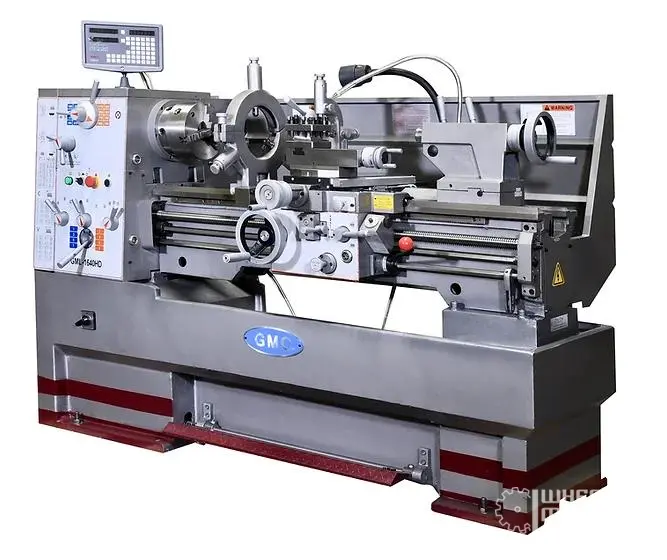

New GMC 16" x 60" Gap Bed Metal Lathe with 2-Axis DRO GML-1660HD

New GMC 16" x 60" Gap Bed Metal Lathe with 2-Axis DRO GML-1660HD

ISO 9001 certified
Large spindle bore 2-1/16”
Heavy Duty spindle D1-6
One-piece solid cast iron machine base
Heavy Duty guideway width 10-1/4”
Heavy Duty main motor 6 HP
16 spindle speeds from 45-1,800 rpm, speeds: 45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800rpm
45 kinds of inch threads, and 39 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year industrial warranty for parts
Max. swing over bed 16 1/16"
Max. length of workpiece 60"
Max. swing over cross slide 10 1/4"
Max. Swing in gap 23 1/4"
Width of Bed 10 1/4"
Effective length in gap to spindle 8 1/2"
Effective length in gap to chuck jaws 3 1/2"
Spindle bore 2 1/16" D1-6
Taper of spindle center M.T. #6 (MT6/MT4 sleeve)
Spindle speeds 45-1,800 rpm / 16 steps
Longitudinal feeds 0.0018-0.07 IPR, 42 kinds
Cross feeds 0.0009-0.03 IPR, 42 kinds
Inch threads 70-2 TPI, 45 kinds
Metric threads 0.2-14 mm , 39 kinds
Diametral Pitch threads 8-40 DP , 21 kinds
Module threads 0.3-3.6 mm, 18 kinds
Max. travel of top slide 4 1/4"
Max. travel of cross slide 8 1/2"
Spindle length w/o chuck
Leadscrew length X TPI
20 1/2"
1 1/4" x 4 TPI
Diameter of tailstock quill 2 1/16"
Max. travel of tailstock quill
5"
Taper of tailstock quill center MT4
Main motor 6 HP, 220V/20A, 3 Phase
Coolant pump 1/8 HP, 220V, 3 Phase
Net weight 4,850 lbs.

Overall dimensions, LxWxH 100" x 32.2" x 56"

- SINO DRO (installed)
- Taper turning attachment (installed)
- 8” 3-jaw chuck with one set of reversible jaws
- 10” 4-jaw chuck
- 12” Face plate
- 5 1/2” large steady rest with roller jaws (bearings)
- Oil pump on Apron for all guideways and leadscrews
- 2” follow rest with roller jaws (bearings)
- Removeable gap
- 4-way tools post
- Foot brake
- Halogen Work light and coolant system
- Full length splash guard
- (2) dead centers and (1) reducing sleeve MT6/MT4
- Thread chasing dial
- Tool box and leveling pads
