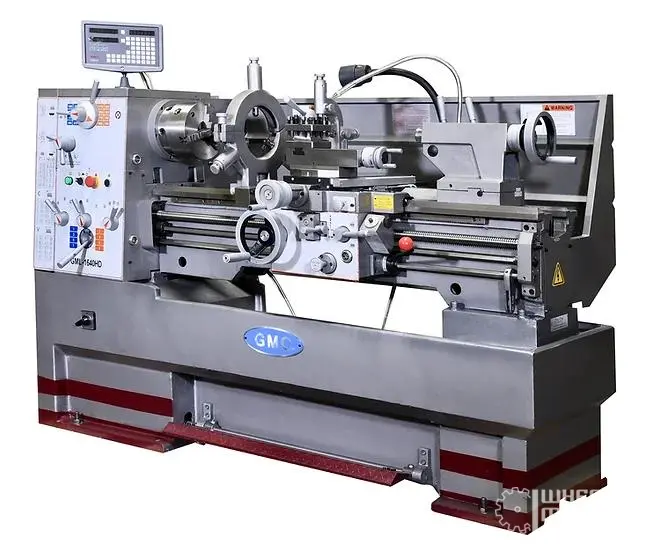

New GMC 14 x 40 Gap Bed Lathe with SINO DRO GML-1440HD

New GMC 14 x 40 Gap Bed Lathe with SINO DRO GML-1440HD

The 14" x 40" Gap Bed Lathe with SINO DRO is the best machine money can buy. Fully equipped with a Taper Attachment, 8” 3-jaw chuck with one set reversible jaws, 10” 4-jaw chuck, 12” Face plate, 5 1/2” large steady rest with roller jaws, 2” follow rest, 4-way tools post, Foot brake Coolant system, and so much more list.

ISO 9001 certified

Large spindle bore 2-1/16”

Heavy Duty spindle D1-6

One-piece solid cast iron machine base

Heavy Duty guideway width 10-1/4”

Heavy Duty main motor 6 HP

16 spindle speeds from 45-1,800 rpm, speeds: 45/ 75/ 90/ 130/ 160/ 195/ 210/ 260/ 350/ 390/ 600/ 690 / 790 / 910/ 1,200/ 1,800 rpm

45 kinds of inch threads, and 39 kinds of metric threads

Threading and feeding rate change without changing gears

Spindle is balanced, hardened and precision ground

Spindle is supported at 3-point by high precision bearings

All gears and shafts are hardened and precision ground

Guideways induction hardened and precision ground

Automatic lubrication system in headstock and feed box

One year warranty for parts

Max. swing over bed 14 7/8"

Max. length of workpiece 40"

Max. swing over cross slide 10 1/16"

Max. Swing in gap 23 1/4"

Width of Bed 10 1/4"

Effective length in gap to spindle 8 1/2"

Effective length in gap to chuck jaws 3 1/2"

Spindle bore 2 1/16" D1-6

Taper of spindle center M.T. #6 (MT6/MT4 sleeve)

Spindle speeds 45-1,800 rpm / 16 steps

Longitudinal feeds 0.0018-0.07 IPR, 42 kinds

Cross feeds 0.0009-0.03 IPR, 42 kinds

Inch threads 70-2 TPI, 45 kinds

Metric threads 0.2-14 mm , 39 kinds

Diametral Pitch threads 8-40 DP , 21 kinds

Module threads 0.3-3.6 mm, 18 kinds

Max. travel of top slide 4 1/4"

Max. travel of cross slide 8 1/2"

Spindle length w/o chuck 20 1/2

Diameter of tailstock quill 2 1/16"

Max. travel of tailstock quill

Headstock size

5"

16" x 17"

Taper of tailstock quill center MT4

Main motor 6 HP, 220V/20A, 3 Phase

Coolant pump 1/8 HP, 220V, 1 Phase

Net weight 4,350 lbs.

Overall dimensions, LxWxH 79" x 32.2" x 53"

Free SINO DRO; Installed

Free Taper turning attachment; Installed

Metal chuck guard with safety shut down when lifting chuck guard

8” 3-jaw chuck with one set reversible jaws

10” 4-jaw chuck

12” Face plate

5 1/2” large steady rest with roller jaws

Oil pump on Apron for all guideways and leadscrews

2” follow rest

Removeable gap

4-way tools post

Foot brake

Coolant system

Halogen Work light

Full length splash guard

(2) dead centers and (1) reducing sleeve MT6/MT4

Thread chasing dial

Tool box and leveling pads

- 10” Drive Plate# DPD610 - CALL FOR PRICE
- Micro Carriage Stop # MCS-GML-1440HD - CALL FOR PRICE
- SINO DRO #1440 for GML-1440HD,0.0001” solution, free install … $free
- 5-C Hand lever type collet closer# 5C, free install - CALL FOR PRICE
- 33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth, # 3900-0014 - CALL FOR PRICE
- Taper turning attachment # TA-GML-1440HD, free installation - CALL FOR PRICE
- ALORIS type QC tool post set # 3900-5230 CXA, 6 pcs -CALL FOR PRICE
- Live Center # 3900-5004 - CALL FOR PRICE
- 5pc Indexable carbide turning set # 2003-0004 - CALL FOR PRICE
- 3/8” carbide insert # 2003-0014 - CALL FOR PRICE
- Lathe package # 1, incl 5pc indexable carbide turning set# 2003-0004, ½ drill chuck # 3700-0102, Chuck arbor # 3700-0157 and 29pc Titanium drill bit set #5000-0001T - CALL FOR PRICE
