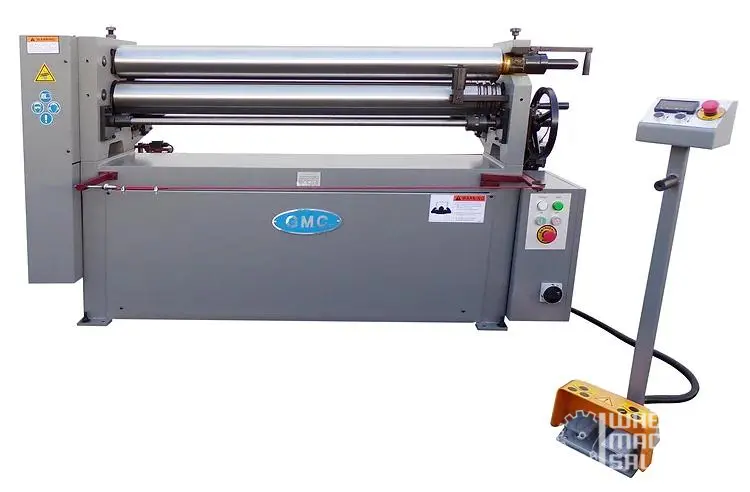

New GMC Power Bending Rolls 8' x 10Ga. PBR-0810E

SO 9001 certified

Taiwan machines

All (3) rolls are hardened rolls, up to 50-52 HRC

3-rollers are driven to perform high accuracy

Adjustable cone attachment included

3/8”, ½” and 5/8” grooves on rollers

One wheel one-side operated for bending roll

One wheel one-site operated for pinch roll (E model is powered)

Heavy duty casting frame

Heavy duty all steel welded construction

1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.

Quiet running operation

Easy swing-out top roller

Safety line all around the machine for emergency stop

All rolls run forward and reverse

Safety type forward/reverse foot pedal

Power source 220V, (option: 440V, 3 phase)

One year industrial warranty for parts

Capacity:

Mild Steel

Stainless Steel

soft aluminum

min. thickness

8'2" x 10Ga.

8'2" x 14Ga.

8'2" x 1/4"

26Ga.

Roll Dia. 6"Min. Bending Dia. Inch8"Pre-bend inch0.12"Rolls Speed ft/min17Rolls Opening 1/2"Main Motor4HP 3PH 220V or440VWeight4,550 lbs. Overal Dimensions 132" x 35" x 56"

Length of Rolls: 8'
Max Thickness (gauge): 10 gauge
# Rolls: 3
Roll Diameter: 6"
