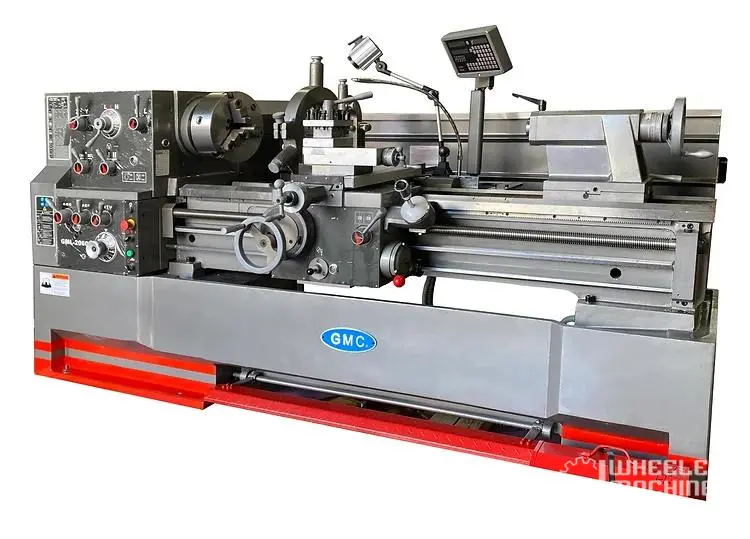

New GMC 20 x 80 Gap Bed Metal Lathe 3-18 Bore 2-Axis DRO GML-2080

New GMC 20 x 80 Gap Bed Metal Lathe 3-18 Bore 2-Axis DRO GML-2080

Bed Gap Metal Lathe with a big spindle bore 3-1/8". Precise, robust, and fully equipped with a 29 swing in gap. Whether you're in a machine shop or looking to replace your old workhorse in your home garage, this metal lathe is for you. It comes standard with a fully assembled metal stand with two cabinets on each side to keep your tooling and accessories stored.

ISO 9001 certified

1-Year Parts Only Warranty

Large spindle bore 3-1/8”

Spindle D1-8

Guideway width 12”

Main motor 10HP

16 spindle speeds from 25-1,800 rpm, 12 speeds

4-way rapid traverse on the carriage longitudinal and cross

60 kinds of inch threads, and 41 kinds of metric threads

Threading and feeding rate change without changing gears

Spindle is balanced, hardened and precision ground

Spindle is supported at 3-point by high precision bearings

All gears and shafts are hardened and precision ground

Guideways induction hardened and precision ground

Automatic lubrication system in headstock and feed box

Max. swing over bed 20"

Max. length of workpiece 80"

Max. swing over cross slide 12 1/2"

Max. Swing in gap 29-1/8"

Width of Bed 12"

Effective length in gap to spindle 6"

Effective length in gap to chuck jaws 3 1/2"

Spindle bore 3 1/8" | D1-8

Taper of spindle center M.T. #7

Spindle speeds 25-1,800 rpm / 12 steps

Longitudinal feeds 0.0011-0.063 IPR, 42 kinds

Cross feeds 0.0003-0.018 IPR, 42 kinds

Inch threads 2-112 TPI, 60 kinds

Metric threads 0.1-14 mm , 41 kinds

Diametral Pitch threads 4-112DP , 50 kinds

Module threads 0.1-7mm, 34 kinds

Max. travel of top slide 5"

Max. travel of cross slide 11 1/4"

Spindle length w/o chuck

Leadscrew length X TPI

17-1/2"

1 1/4" x 4 TPI

Diameter of tailstock quill 2-3/8”

Max. travel of tailstock quill

5-1/8”

Taper of tailstock quill center MT4

Main motor

10 HP 3 Ph.

Prewired: 220VAC / 35A

Optional: 440VAC / 20A

Coolant pump

1/8 HP 3 Ph.

Prewired: 220VAC

Optional: 440VAC

Net weight 6,350 lbs.

Overall dimensions, LxWxH 128" x 43" x 59"

Free Taper turning attachment, , installed

Free SINO DRO, installed

Automatic kick-out longitudinal carriage stop system

10” 3-jaw chuck with top reversible jaws, direct mount

12” 4-jaw chuck, direct mount

14” Face plate

1/2”-6” steady rest with roller jaws

7/8”-4-3/8” follow rest

Removeable gap

4-way tools post

Foot brake

Halogen Work light and coolant system

Full length splash guard

Dead centers

Thread chasing dial

Tool box and leveling pads

- 5-C Hand lever type collet closer, free install - CALL FOR PRICE
- 33 pc 5C collet set, from 1/16”-1-1/16” by 32 nd , Part# 3900-0014 - CALL FOR PRICE
- ALORIS type QC tool post set # 3900-5260-300, 6 pcs - CALL FOR PRICE
- Live Center # 3900-5004 for tailstock - CALL FOR PRICE
- Live Center # 3900-5005 for headstock - CALL FOR PRICE
- ¾ to 10-1/2” large steady rest with roller jaws - CALL FOR PRICE
