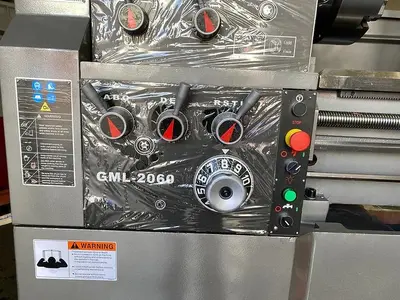

New GMC 20 x 60 Gap Bed Metal Lathe 2-Axis DRO 3-18 Bore GML-2060

New GMC 20 x 60 Bed Gap Metal Lathe 2-Axis DRO 3-18 Bore GML-2060

- ISO 9001 certified
- 1-Year Parts Only Warranty
- Large spindle bore 3-1/8”
- Spindle D1-8
- Guideway width 12”
- Main motor 10HP
- 16 spindle speeds from 25-1,800 rpm, 12 speeds
- 4-way rapid traverse on the carriage longitudinal and cross
- 60 kinds of inch threads, and 41 kinds of metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box

Max. swing over bed 20"

Max. length of workpiece 60"

Max. swing over cross slide 12 1/2"

Max. Swing in gap 29-1/8"

Width of Bed 12"

Effective length in gap to spindle 6"

Effective length in gap to chuck jaws 3 1/2"

Spindle bore 3 1/8" | D1-8

Taper of spindle center MT7

Spindle speeds 25-1,800 rpm / 12 steps

Longitudinal feeds 0.0011-0.063 IPR, 42 kinds

Cross feeds 0.0003-0.018 IPR, 42 kinds

Inch threads 2-112 TPI, 60 kinds

Metric threads 0.1-14 mm , 41 kinds

Diametral Pitch threads 4-112DP , 50 kinds

Module threads 0.1-7mm, 34 kinds

Max. travel of top slide 5"

Max. travel of cross slide 11 1/4"

Spindle length w/o chuck

Leadscrew length X TPI

17-1/2"

1 1/4" x 4 TPI

Diameter of tailstock quill 2-3/8”

Max. travel of tailstock quill

5-1/8”

Taper of tailstock quill center MT4

Main motor

10 HP 3 Ph.

Prewired: 220VAC / 35A

Optional: 440VAC / 20A

Coolant pump

1/8 HP 3 Ph.

Prewired: 220VAC

Optional: 440VAC

Net weight 5,750 lbs.

Overall dimensions, LxWxH 108" x 43" x 59"

- Free Taper turning attachment, , installed
- Free SINO DRO, installed
- Automatic kick-out longitudinal carriage stop system

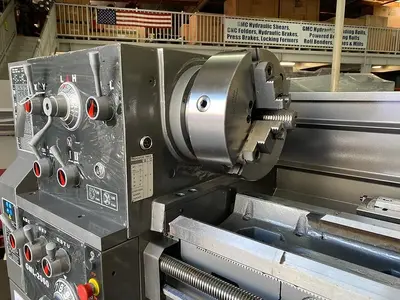

- 10” 3-jaw chuck with top reversible jaws, direct mount
- 12” 4-jaw chuck, direct mount
- 14” Face plate
- 1/2”-6” steady rest with roller jaws
- 7/8”-4-3/8” follow rest
- Removeable gap
- 4-way tools post
- Foot brake
- Halogen Work light and coolant system
- Full length splash guard
- Dead centers
- Thread chasing dial
- Tool box and leveling pads

5-C Hand lever type collet closer, free install - CALL FOR PRICE

33 pc 5C collet set, from 1/16”-1-1/16” by 32 nd , Part# 3900-0014 - CALL FOR PRICE

ALORIS type QC tool post set # 3900-5260-300, 6 pcs - CALL FOR PRICE

Live Center # 3900-5004 for tailstock - CALL FOR PRICE

Live Center # 3900-5005 for headstock - CALL FOR PRICE

¾ to 10-1/2” large steady rest with roller jaws - CALL FOR PRICE
