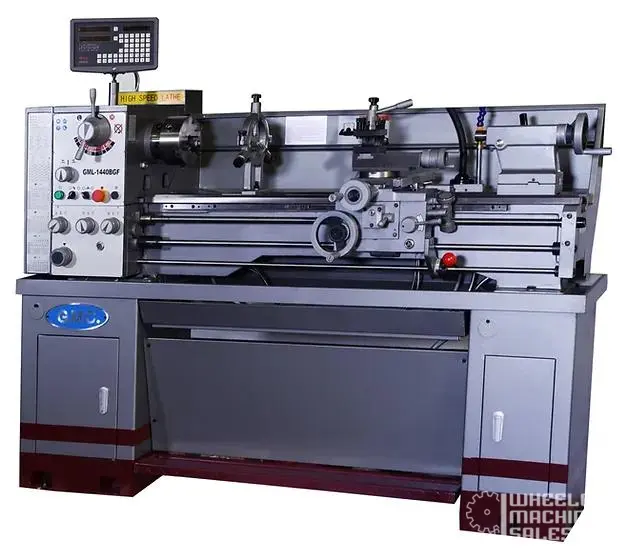

14" x 40" High Speed Geared Head Precision Toolroom Metal Lathe | Single Phase GML-1440BGF-1

14 x 40 High Speed Geared Head Precision Toolroom Metal Lathe GML-1440BGF-1

Our 14"x40" engine lathe is suitable for machining in metalworking machine shops, tool rooms, and repair shops. Ideal for making threads and turning metal parts like, shafts, spindles, sleeves, discs, weapon components, and many more parts. Our lathes are robust, reliable, easy to use, convenient to repair, precise, quiet, and have no vibration.

ISO 9001 certified

1-Year Parts Only Warranty

Lifetime Tech Support by phone and video

Full Geared-head precision Metal Lathe with foot brake

Quick-change gearbox with fast and easy threading set up

3 HP heavy duty main motor runs on 220V Single-Phase power

1.5” Spindle bore

Spindle Nose D1-4 Camlock

Heavy Duty guideway; 7.5” width

8 spindle speeds ranging from 70-2,000 RPM

56 kinds of imperial threads

44 kinds of metric threads

Spindle is balanced, hardened and precision ground

All gears and shafts are hardened and precision ground

Guideways induction hardened and precision ground

Automatic lubrication system in headstock and feed box

Comes equipped with:

SINO (DRO) Digital Readout - Installed

Taper Attachment - Installed

6” 3-Jaw Chuck with reversible jaws

8” 4-Jaw Chuck with reversible jaws

10” Face Plate

3.75” Large Steady Rest

2” Follow Rest

Foot Brake

Coolant System

Metal Stand with 2 Cabinets

Halogen work lamp

4-Way Tool Post

Full Length Splash Guard

2 – Dead Centers

1 – Reducing Sleeve

1 – Thread Chasing Dial

1 – Tool Box with maintenance tools

L A T H E C A P A C I T Y

Max. Swing Over Bed

14”

Max. length of workpiece

40”

Max. length of cutting

34”

Max. Swing Over Cross Slide

8.25”

Center Height

7”

Distance between centers

40”

Bed Width

7.5”

Bed Length

S P I N D L E

Spindle Nose

D1-4 Camlock

Spindle Bore

1.5”

Spindle Taper Nose

MT5 (Morse Taper #5)

Spindle Taper Sleeve

MT3 (Morse Taper #3)

Range of Spindle Speeds

70-2,000 RPM

Low Spindle Speeds

70/115/190/300 RPM

High Spindle Speeds

460/755/1255/2000 RPM

Steps of Spindle Speed

8 steps

F E E D

Range of Longitudinal Feeds

0.00168” - 0.11750”/rev.

IPR, 24 kinds

Range of Cross feeds

0.00046” - 0.03231” /rev.

IPR, 24 kinds

T H R E A D I N G

Imperial Threads QTY. / Speed

56 / 4-112 TPI

Metric Threads QTY. / Speed

44 / 0.1-7.0 mm

Diametral Pitch threads QTY. / Speed

32 / 16-112 DP

Module threads

34 / 0.1 – 1.75 mm

T A I L S T O C K

Tailstock Quill Diameter

1.5”

Tailstock Quill Taper

MT3 (Morse Taper #3)

Tailstock Quill Travel

4”

A P R O N

Compound Slide Travel

4.25”

Cross Slide Travel

7.25”

Cross Feed QTY. / Speed

0.014 – 0.380mm / rev

Leadscrew Diameter

7/8”

Feed Rod Diameter

3/4"

Max. Cutting Tool – 4 Way Tool Post

5/8”

M O T O R S & E L E C T R I C A L

Main motor

3 HP Single Phase

Power (prewired voltage)

220VAC

Full-Load Current Rating

12 Amps.

Minimum Circuit Size

15 Amps.

Connection Type

Pig Tail; hardwire or add plug

Coolant pump

1/16HP, 220V, Single Phase

F L U I D C A P A C I T I E S

Headstock Capacity | Type

4 Gal. | ISO 32 (eg. Texaco Regal R&O 32 or Mobil DTE Oil Light)

Gearbox Capacity | Type

1.4 Qt. | ISO 68 (eg. Texaco Regal R&O 68 or Mobil DTE Heavy)

Apron Capacity | Type

1.2 Qt. | ISO 68 (eg. Texaco Regal R&O 68 or Mobil DTE Heavy)

M A C H I N E D I M S.

Net Weight (approx.)

1,730 LBS

Overall Dimensions

70”L x 35”W x 59”H

Shipping Type

Wood Slat Crate

- 10” Drive Plate# DPD410 - CALL FOR PRICE
- Micro Carriage Stop#MCS1440 - CALL FOR PRICE
- 5-C Hand lever type collet closer, # 5C, free install - CALL FOR PRICE
- 33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth, #3900-0014 - CALL FOR PRICE
- 6pc ALORIS type quick change toolpost# 3900-5920 BXA (wedge) - CALL FOR PRICE
- Live Center MT3 # 3900-5003 - CALL FOR PRICE
- ½” drill chuck # 3700-0102 - CALL FOR PRICE
- ½” drill chuck arbor # 3700-0153 - CALL FOR PRICE
- Lathe package # 1, incl 5pc indexable carbide turning set# 2003-0004, drill chuck # 3700-0102, Chuck arbor # 3700-0153 and 29pc Titanium drill bit set #5000-0001T - CALL FOR PRICE
