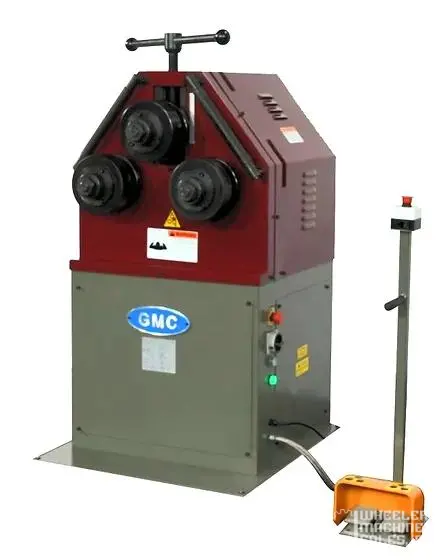

New GMC Ring and Angle Roll Bender with Manual Positioning Single Phase PRB-55-1PH

Ring and Angle Roll Bender with Manual Positioning Single Phase PRB-55-1PH

ISO 9001 certified

2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube

Easy to operate in two positions; vertically and horizontally on its back

DRO - Digitally displays your exact position and ensures repeatability

Heavy Duty 4HP AC main motor

1 - Top forming roll (hydraulic driven)

2 - Driven bottom rolls

Robust, all steel and welded framework

Quiet, compact, hydraulic system that ensures precision and improves productivity

Adjustable pressure control valve

1-year parts only warranty and lifetime tech support by video and phone

- Equipped with 1-set of universal forming rolls suitable for many applications One set of universal combination rollers can do most works except pipes & round tubes (will need special dies)
- Digital Readout (ensures repeatability and digitally displays your exact position)
- Left and right guide rollers (easily adjustable)
- Foot pedal (controls forward and reverse)
- Digital Readout (digital display)
- 4-metal support legs for horizontal position

Optional roller sets for pipe & round tubing, any size, one set (3 rolls) - call for pricing

Optional anti-twisting attachment - call for pricing

Specifications

Model

PRB-55-1PH

Roll Adjustment

Manual

Dia. of roller

7-1/2”

Dia. of roller shaft

2”

Roller speed

16 RPM

Main Motor

4 HP Single Phase

Prewired: 220VAC | 15A

Dimensions

40in x 35in x 65in

Weight

1,120 LBS

Oil Tank Capacity

(only fill up 90%)

7 Gal.

Recommended Hydraulic Oil

Texaco-Rando HD-68 Hydraulic Oil

Shell AW-68 Hydraulic Oil

Available Roll Sets ( call for pricing )

34T-PRB55 ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-55 OR 55H

1T-PRB55 ROLL SET FOR 1 INCH TUBING FOR GMC PRB-55 OR 55H

114T-PRB55 ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-55 OR 55H

112T-PRB55 ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-55 OR 55H

2T-PRB55 ROLL SET FOR 2 INCH TUBING FOR GMC PRB-55 OR 55H

212T-PRB55 ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-55 OR 55H

34P-PRB55 ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-55 OR 55H

1P-PRB55 ROLL SET FOR 1 INCH PIPE FOR GMC PRB-55 OR 55H

114P-PRB55 ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-55 OR 55H

112P-PRB55 ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-55 OR 55H

2P-PRB55 ROLL SET FOR 2 INCH PIPE FOR GMC PRB-55 OR 55H
