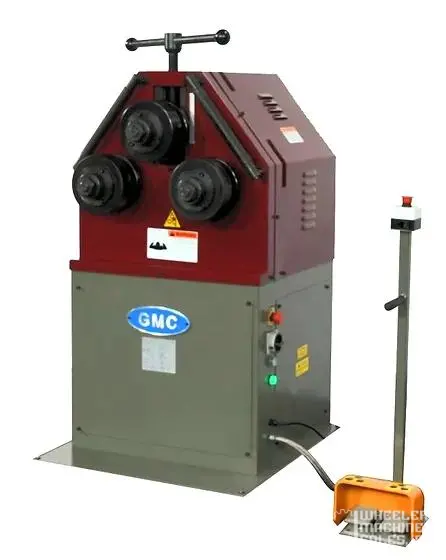

New GMC Angle Roll Bender with Manual Positioning PRB-55

New GMC Angle Roll Bender with Manual Positioning PRB-55

ISO 9001 certified

2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube

Heavy Duty 3HP AC main motor

1 top forming roll (manually driven)

2 driven bottom rolls

Robust, all steel and welded framework

1-year parts only warranty and lifetime tech support by video and phone

One set of universal combination rollers can do most works except pipes & round tubes (will need special dies)

Left and right guide rollers (easily adjustable)

Foot pedal (controls forward and reverse

- Optional roller sets for pipe & round tubing, any size, one set (3 rolls) -call for pricing
- Optional anti-twisting attachment -call for pricing

Model

PRB-55

Pipe Capacity

2” schedule 40 / Min. Dia.24”

Tube Capacity

2-1/2”x14 Ga. (wall) / Min. Dia. 24”

Solid Round Tube

1-3/8” / Min. Dia. 24”

Square Tube

2”x2”x3/16” (wall) / Min. Dia. 24”

Solid Square Tube

1-3/8”x1-3/8” / Min. Dia. 24”

Solid Flat Bar

4”x9/16” (wall) / Min. Dia. 36”

Solid Flat Bar

2-3/8”x3/8” (wall) / Min. Dia. 20”

Angle Flat Bar

2-3/4”x2”x3/8” (wall) / Min. Dia. 47”

Angle Iron Leg-In

2”x3/16”(wall) / Min. Dia. 28”

Angle Iron Let-Out

2”x3/16”(wall) / Min. Dia. 20”

T-Iron Leg-In

2”x3/16” (wall) / Min. Dia. 28”

T-Iron Leg-Out

2”x3/16” (wall) / Min. Dia. 20”

Channel Leg-In

3-1/8”x1-3/4”x3/16” / Min. Dia. 26”

Channel Leg-Out

3-1/8”x1-3/4”x3/16” / Min. Dia. 24”

Dia. of Roller

7 1/2"

Dia. of Roller Shaft

2"

Roller Speed

16 RPM

Motor

3 HP, 220VAC 3-Phase

(Optional 440VAC)

Dimensions

40" x 35" x 65"

Weight

1,050 lbs.
