Pittsburgh Lockformer Machine PL-16E | Precision Sheet Metal Interlocking Joints

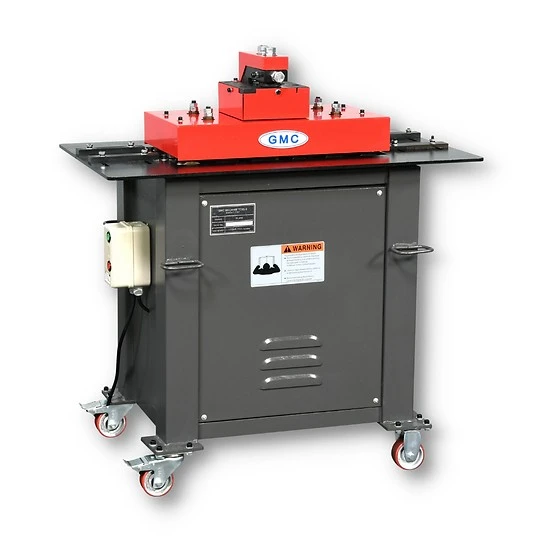

The Lockformer Pittsburgh Machine PL-16E from GMC Machine Tools is a versatile and reliable machine for sheet metal fabrication. This machine has a 16 gauge capacity and can create Pittsburgh seams, standing seams, and various other ductwork shapes. With 5 forming stations, this machine is capable of producing high-quality ductwork quickly and efficiently.

The Lockformer Pittsburgh Machine PL-16E is made with high-quality components and features a heavy-duty frame for durability. The machine is also equipped with a powerful motor to provide consistent and reliable performance.

Other features of the Lockformer Pittsburgh Machine PL-16E include:

16 gauge capacity

5 forming stations

Creates Pittsburgh seams, standing seams, and various other ductwork shapes

Heavy-duty frame for durability

Powerful motor for consistent and reliable performance

If you're looking for a machine that can handle a variety of ductwork shapes and produce high-quality results every time, the Lockformer Pittsburgh Machine PL-16E is the perfect choice. Order yours today and take your sheet metal work to the next level.

- 16 gauge capacity: The PL-16E can handle sheet metal up to 16 gauge, making it suitable for a wide range of applications.
- Creates tight, interlocking joints between two pieces of sheet metal
- Made with high-quality materials and construction for durability and longevity
- Maintenance-friendly design: The machine is designed for easy maintenance, with quick-access panels that allow for easy cleaning and lubrication.
- Compact and portable design for easy storage and transport
- Compatible with a variety of Lockformer accessories and attachments for added versatility and functionality
- ISO 9001 certified
- 3 HP Heavy Duty AC main motor, 220V, 3 phase
- Standard Pittsburgh Attachment
- Standard Round Power Flange Attachment, Double Seam Roll and Drive Cleat Roll (power flange attachment can only do radius parts)
- ACME side can be operated at same time
- Heavy duty caster wheels for easy moving

Standard Pittsburgh Attachment # PA-16E, installed

Power Flange Attachment # FA-16E, installed

Drive Cleat Roll # DCR-16E, installed

Double Seam Roll # DSR-16E, installed

- RAR-16E, right angle roll set for PL-16E - Call for pricing
- Digital Inverter Drive control box for converting to PL-16E-1phase,add - Call for pricing

Capacity:

Pittsburgh Lock

20 Ga. - 16 Ga.

Double Seam Lock 20 Ga. - 16Ga.

Drive Cleat Lock 24 Ga. - 22 Ga.

Power Flange 1/4" 20 Ga. - 16 Ga.

Depth of pocket 1/2"

Feeding speed 23 FPM

Main Motor

3 HP, 3 Phase 10 AMP

Prewired: 220VAC

220V, 1 phase is optional

Weight 628 LBS

Machine Dimensions (LxWxH):

Shipping Dimensions:

43" x 27" x 48"

43" x 27" x 48"
