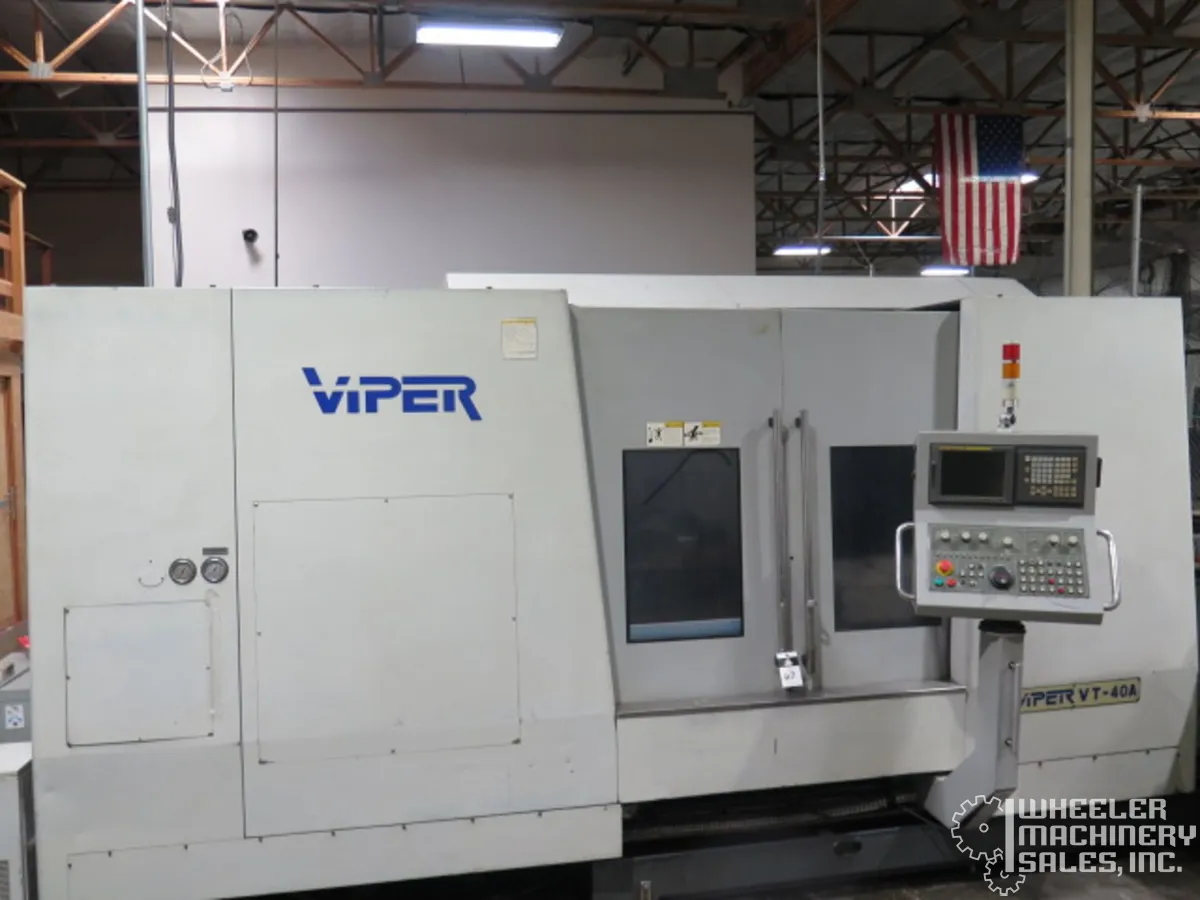

2005 Mighty Viper VT-40A CNC Lathe #7106 #2

2005 Mighty Viper VT-40A CNC Lathe #7106 #2

CAPACITIES:
Swing Over Bed: 39.37"
Maximum Turning Diameter: 34.64"
Swing Over Cross Slide: 29.13
Maximum Turning Length: 37.79"
Slideway Slant Angle: 45 Degrees
X-Axis Travel: 17.72"
Z-Axis Travel: 39.37"
Spindle Nose: A2-11
Spindle Hole Diameter: 5.15"
Bar Capacity: 4.52"
Spindle Drive Motor (Upgraded): 60 HP
Spindle Speed Range (2-Speed Gearbox): 1 - 2000 RPM
X-Axis Rapid Traverse: 590 IPM
Z-Axis Rapid Traverse: 629.92 IPM
Approximate Floor Space: 161" x 110"
Approximate Weight: 28,600 Lbs.

EQUIPPED WITH:
Fanuc 21i-TB CNC Control
15" 3-Jaw Chuck
12-Position Turret
Programmable Tailstock
Automatic Lubrication
Coolant System
Heat Exchanger
Built in Work Light
Front Door Safety Lock
Chip Conveyor

Swing: 39.37"
Machining Length: 37.79"
# Axis: 2
Chuck Size: 15"
Bar Capacity: 4.52"
Power: 60 hp
Max RPM: 2,000 RPM
Turning Dia: 34.64"
Tailstock: Yes
