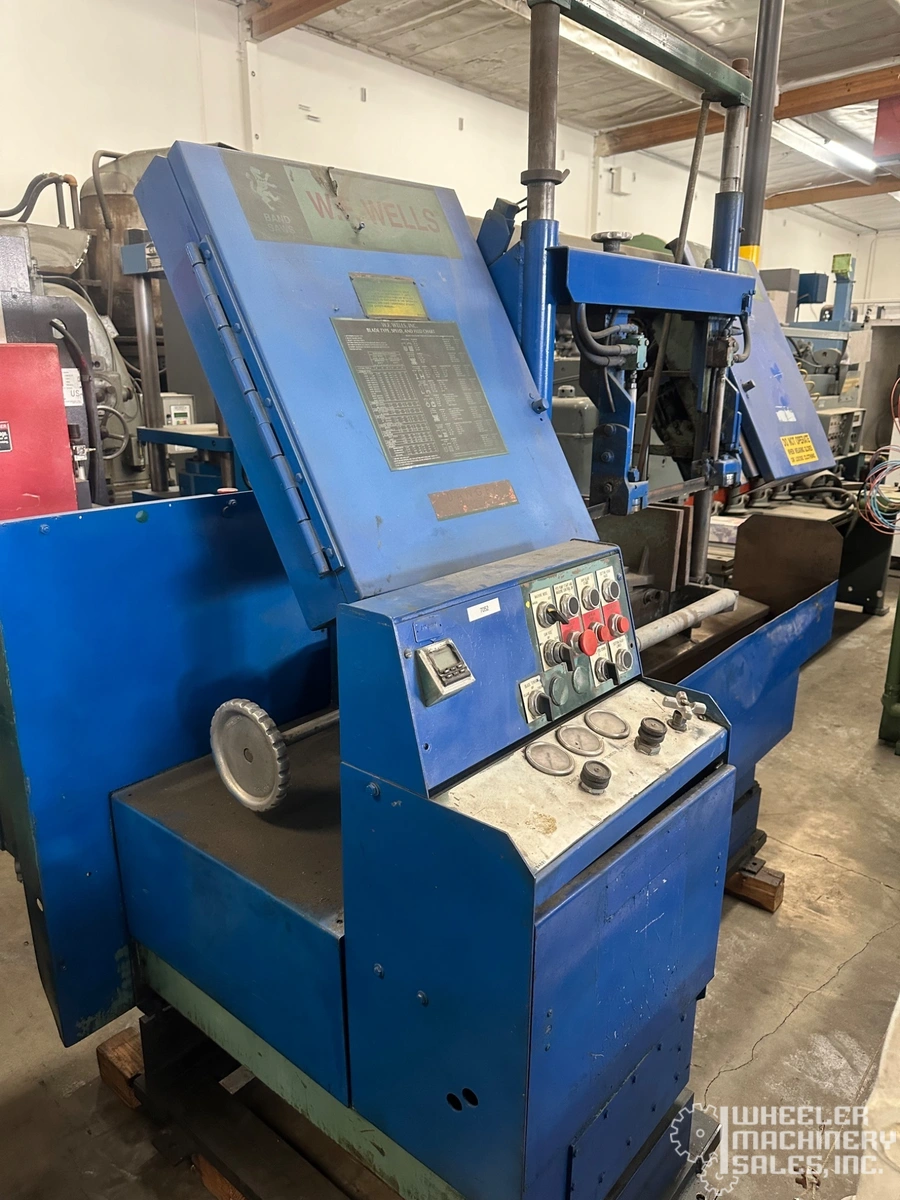

W.F. Wells F-16-2A Semi-Auto Twin Post Horizontal Band Saw 16" x 20" #7052 #2

W.F. Wells F-16-2A Semi-Auto Twin Post Horizontal Band Saw 16" x 20" #7052 #2

SPECIFICATIONS:
Capacity: 16” x 17”
Weight Capacity – Saw Bed: 5,000 lbs.
Weight Capacity – Bar Feed: 9,000 lbs.
Blade Speed: 60-425 SPM
Blade Size: 1.25” x .042” x 15’
Blade Guides: Carbide w/ Backup Rollers
Blade Tension: Hydraulic
Bandwheel Size: 20” Diameter
Vise: Hydraulic
Sawing Pressure: 0-300 Lbs.
Blade Drive Motor: 7.5 HP
Hydraulic Drive Motor: 2 HP
Work Height: 35”
Coolant Capacity: 10 Gallons
Hydraulic Capacity: 20 Gallons
Operator Controls: Console Mounted
Barfeed Projection: .125”-24” Per Stroke
1,2,or 3 Strokes per Cut
Length Calibration: .001”
Projection Accuracy: +/- .005” per Shuttle
Dimensions: 93” x 97” x 85” Height
Shipping Weight: 3,650 lbs.
