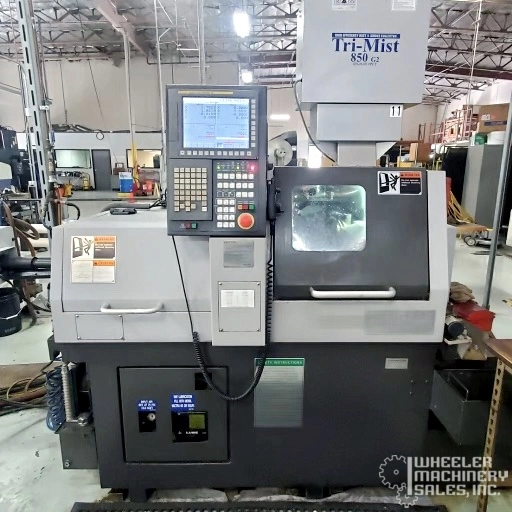

2017 Tsugami B0126-III Swiss Type CNC Lathe #7040 #2
Have one to sell?
ConditionUsed
1 available
2017 Tsugami B0126-III Swiss CNC Lathe, used; features 12 mm spindle hole, 12,000 RPM, 1.5 kW power. Includes Fanuc 32i-B control, 6-axis machining, and Tri-Mist collector. Equipped with 25 tool positions, live tooling, and Edge Scout barfeeder.
2017 Tsugami B0126-III Swiss Type CNC Lathe #7040 #2
SPECIFICATIONS:
LIVE TOOLING / MILLING
C-Axis: Equipped With
Y-Axis: Equipped With
Live Tooling / Milling: Equipped With
SPECIFICATIONS
Z-Travel: 7"
Max Turning / Cutting Length: 7"
SPINDLE
Spindle Bore: 1"
Spindle Speed: 12,000 RPM
SECOND SPINDLE
Sub-Spindle: Equipped With
Second Spindle Speed: 12,000 RPM
TURRET
Tool Positions: 25
Turret Options: (8) Live Tool Positions
Live Milling Max RPM: 8,000 RPM
CONTROL
Control Make/Model: Fanuc 32i-B CNC Control
OPTIONS
Mist Collector
6-Axis Machining
Work Conveyor with Parts Catcher
Tri-Mist Mist Collector
Coolant Thru-Spindle on Sub
LNS Chip Conveyor
Chucker Kit
Mist Buster
Thru-Spindle Coolant;High Pressure Coolant
High Pressure Coolant PSI: 2,000 PSI
Chip Removal: Chip Conveyor
Barfeeder Make/Model: Edge Scout Barfeeder
