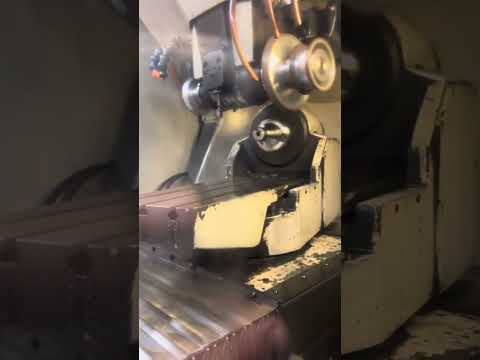

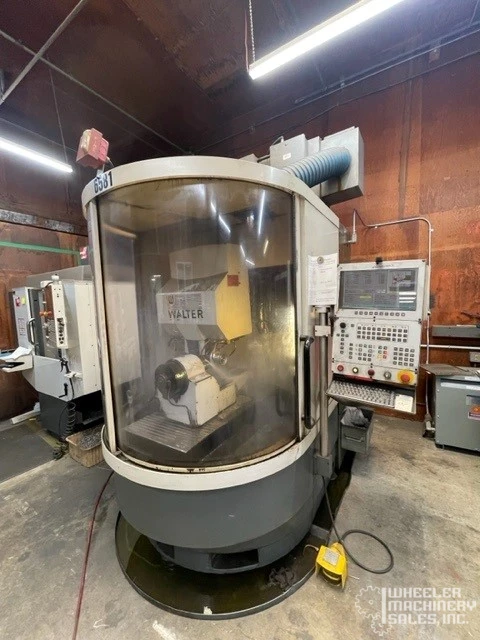

1997 Walters Helitronic Power HMC-400 CNC Tool & Cutter Grinder #6977 #1

1997 Walters Helitronic Power HMC-400 CNC Tool & Cutter Grinder #6977 #1

SPECIFICATIONS:
Capacity of Workpiece Dia.: 0.04″ – 3.9″
Max. Peripheral Grinding: 10″
Max. End Face Grinding: 7.3″
Max. X Axis Travel: 13.8″
Max. Y Axis Travel: 7.9″
Max. Z Axis Travel: 18.5″
A Axis: Infinite
C Axis Rotary: +/- 200° ( 0.001° )
Grinding Spindle Motor: 16 HP
Grinding Wheel Type: Diamond or CBN Grinding
Wheel Dia. Max.: 5.9″
Grinding Wheel Speed: 500 to 10,500 RPM
Air Required: 6 bar
Total Power Requirement Max: 18kw
Power: 460v / 60hz
Overall Dimensions: 85.8″ x 63″ x 108" High Weight: 7055 lbs.

EQUIPPED WITH:
10,500 RPM Precision Spindle
Windows based Walter CNC Control
CBN Diamond Wheel installed
Probing System
Coolant and Filtration System
Full Enclosure
Manuals
Work Light
