Sutherland Mark-88 OBS Punch Press 88 Ton #6954 #1
Have one to sell?
ConditionUsed
1 available

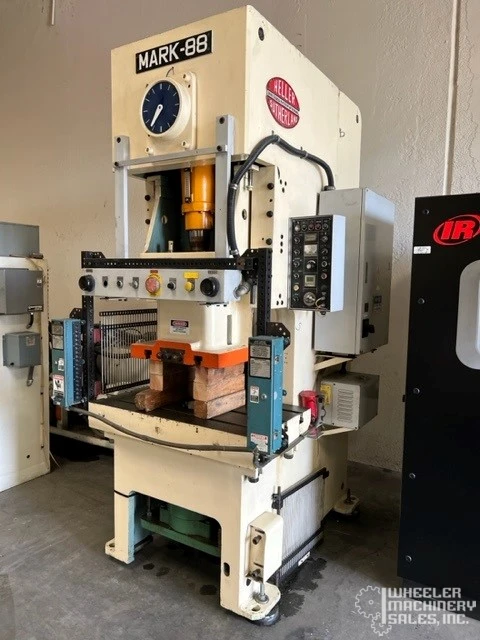

Used Sutherland Mark-88 OBS Punch Press with 88-ton capacity and adjustable stroke speed from 55 to 130 SPM. Includes bolster plate, dual palm button console, and light curtains. Slide dimensions are 22" x 18", powered by 10 HP motor.
Sutherland Mark-88 OBS Punch Press 88 Ton #6954 #1
SPECIFICATIONS:
Capacity: 88 Ton
Blanking Capacity: 70 Ton
Slide Stroke: 3.9"
Strokes Per Minute: 55 to 130 SPM (Variable)
Die Height: 22.8"
Slide Adjustment: 3.2"
Slide Area LR x FB: 22" x 18"
Bolster Area LR x FB: 41.3" x 23.6"
Main Motor: 10 HP
Air Pressure Required: 72 PSI
EQUIPPED WITH:
Bolster Plate
Dual Palm Button Console (Mounted on Press)
Variable Strokes Per Minute
Light Curtains
