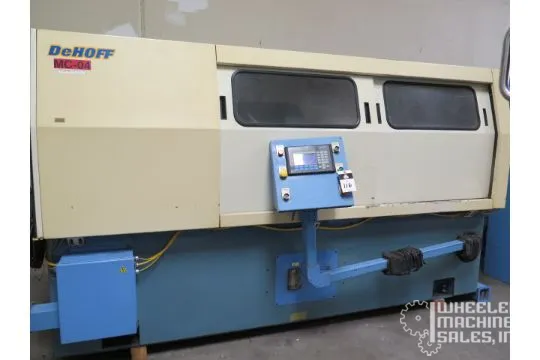

2001 De Hoff 1536 CNC Gun Drill with De Hoff Drill Sharpener #6854 #2
Have one to sell?
ConditionUsed
1 available
2001 De Hoff 1536 CNC Gun Drill, #6854. Features include 7.5 HP spindle, 1.5" diameter drilling in mild steel, 18" stroke, 195-5400 rpm, Allen Bradley controls, sharpener, filtration, and chip conveyor. Ideal for precision and efficient operations.
2001 De Hoff 1536 CNC Gun Drill #6854 #2
DeHoff Model 1536
Serial # DH-1977
Spindle Horsepower 7 1/2 HP
Drill Capacity 1 1/2" Diameter Mild Steel
Number of Drill Heads: 1
Number of Spindles: 1
Drill Head Stroke: 18 inches
Feed Rate: .1 ipm to 30 ipm
Rapid Retraction of Drill Head: 400 ipm
Spindle Speed: 195-5,400 rpm Variable Frequency 3 Step / 2- Groove Pulley
Spindle Centerline Parallel to Slide Way: <0.0005 inches/foot
Face of Oil Pressure Head Perpendicularity < 0.0005 inches at 6 inch diameter
Spindle Runout: <0.0002 inches, total indicator reading
Tank Capacity: 300 Gallons
High Pressure Coolant Pump: 60 gpm
Maximum Pressure: 2000 Psi
High Pressure Pump Motor: 30 HP
Transfer Pump Motor: 3 HP / 80 gpm
Machine Logic: Allen Bradley SLC 5/04 PLC
Main Voltage: 460 volts, 3 phase
Operator Control Voltage: 110 volt
EQUIPPED WITH:
Kays/De Hoff Gun Drill Sharpener
Allen Bradley Panel View Controls
12" 6-Jaw Main Chuck
8" 3-Jaw Sub Chuck
De Hoff Filtration
Chip Conveyor
