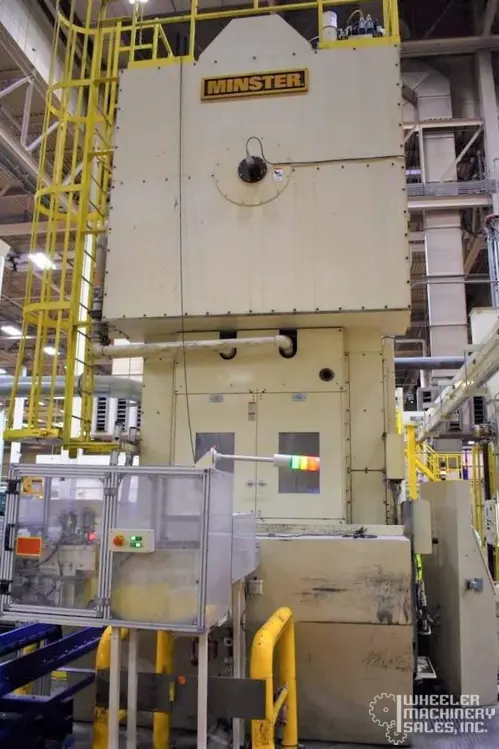

2011 Minster E2-1200-120-60 Eccentric Geared Straight-Side Transfer Press #6822

2011 Minster E2-1200-120-60 Eccentric Geared Straight-Side Transfer Press #6822

SPECIFICATIONS:
Stroke: 12” (305mm)
Shut Height (SDAU): 44” (1118mm)
Slide Adjustment: 12" (305mm)
Speed: 25 – 45 SPM
Bolster Area: 120" x 60"
Slide Face Area: 70.8" x 27.6"

EQUIPPED WITH:
Wayne Trail WTTS-II Through Window Transfer System
Die Change System
10.8" Bolster Plate (275mm)
Air Clutch & Brake
Hydraulic Overload Protection
Automatic Counterbalance Adjustment
Mechanical Bed Knockout System
Slide Knockout Cylinders
Bed Draw Cushion
Adjustable Die Safety Blocks
(4) Vibro-Dynamics Isolator Mounts
Complete Sound Enclosure
Allen-Bradley 1500P Touchscreen PLC
B&R Touch Screen Automation Panel
Pedestal Mounted Dual Palm Button Operation
125-kW Main Motor
Press is Pit Mounted
