2003 Voumard 300 CNC Universal ID/OD Grinder in used condition. Features include full enclosures, Siemens CNC control, 21.653" max OD grinding, 19.685" max ID grinding, and 29.527" overall grinding length. Ideal for versatile grinding needs.

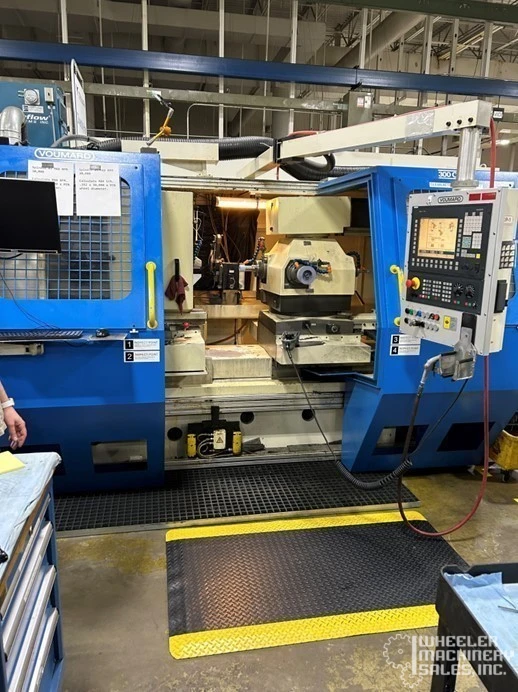

Voumard 300 CNC Universal ID/OD CNC Grinder #6774 #2
SPECIFICATIONS:
O.D. Grinding (max)(inch): 21.653
I.D. Grinding (min): 0.039
I.D. Grinding (max, inch): 19.685
O.A. Grinding L. (inch): 29.527
Workpiece weight (max, lbs): 1,100
Longitudinal Travel (inch): 39.3
Cross Travel (inch): 11.81
Machine Weight (lbs): 17,600
O.D. Grinding (max)(inch): 21.653
EQUIPPED WITH:
Full Enclosures
Siemens CNC Control
MORE ABOUT THIS MACHINE:
The Voumard 300 CNC Large Capacity Production Center Grinder Grinding of short workpieces in a chuck or centerless system, long shafts in a steady rest. 4-position NC indexing wheel spindle turret enabling internal or external grinding operations. Manual or automatic loading. Optionally - U Axis work head cross slide to increase the OD grinding capacity B Axis work head swiveling for taper grinding. C Axis work head spindle rotation control for cam or thread grinding D Axis complementary axis dresser point rotation control.
