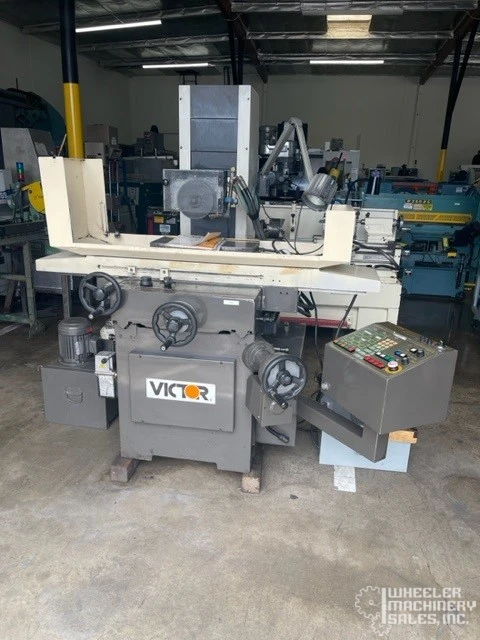

Victor PFG-1020AH Hydraulic Surface Grinder 10" x 20" #6761 #2

Victor PFG-1020AH Hydraulic Surface Grinder 10" x 20" #6761 #2

SPECIFICATIONS:
Table Size: 10″ x 20″
Max. Wheel Size: 7″ x 0.5″ x 1.25″
Max. Table Travel: 10 3/4″ x 22″
Max. Surface Ground: 10″ x 20″
Max. Distance from Spindle Center to Table: 20″
Chuck Size: 10″ x 20″ (Electromagnetic Chuck)
Spindle Wheel Speed: 3,500 RPM
Table Speed: 200″ – 1,000″/min.
Table Slideway: V and Flat Turcite Way
Auto Cross Feed Increment: 0.004″ – 0.47″
Power Cross Feed: 44″/min.
Cross Handwheel Feed per Graduation: 0.001″
Cross Handwheel Feed per Revolution: 0.2″
Vertical Handwheel Feed per Graduation: 0.0001″
Vertical Handwheel Feed per Revolution: 0.05″
Spindle Drive Motor: 3 HP
Hydraulic Pump Motor: 1 HP
Auto Cross Feed Motor: 1/5 HP
With Optional Automatic Downfeed:
Rapid Power Head Elevation: 13″/min.
Auto Downfeed (Including Rapid): 0.0001″ – 0.0999″/min.
Rapid Head Elevation Motor: 1/5 HP
Shipping Dimensions: 84″ x 59″ x 79″ H
Shipping Weight: approx. 3,410 lbs.
