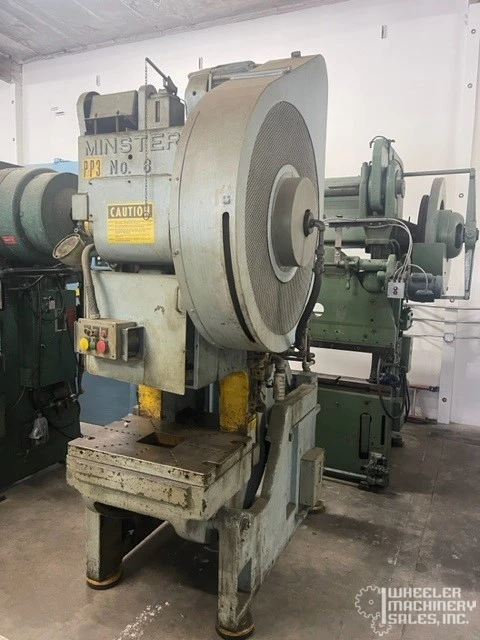

Minster #6 OBI Punch Press 60 Ton #6741 #2
Have one to sell?
ConditionUsed
1 available
Minster #6 OBI Punch Press, 60-ton capacity. Features a 6" stroke, 14" max shut height, and 90 strokes/min. Equipped with air clutch/brake, dual palm controls, and auto lube. Dimensions: 73"x77"x108", weight: 14,500 lbs. Ideal for demanding operations.
Minster #6 OBI Punch Press 60 Ton #6741 #2
SPECIFICATIONS:
CAPACITY: 60 TONS
STROKE: 6″
MAX. SHUT HEIGHT TO BED: 14″
RAM ADJUSTMENT: 3″
BED AREA: 32″ X 21″ (RL X FB)
RAM AREA: 24″ X 14″ (RL X FB)
BOLSTER SIZE 32″ X 21″ (RL X FB) X 2.5″ THICK
SPEED: 90 STROKES PER MINUTE
THROAT DEPTH: 11″
DISTANCE BETWEEN UPRIGHTS: 15″
FLOOR TO BED: 33″
ELECTRICAL: 5 HP 220/440V-3-60
APPROX. DIMENSIONS: 73″ X 77″ (RL X FB) X 108″ HIGH
APPROX. WEIGHT: 14,500 LBS.
EQUIPPED WITH:
MINSTER AIR CLUTCH / BRAKE
DUAL PALM BUTTON PRESS CONTROLS
CONTINUOUS AND SINGLE STROKE MODES
EJECTOMAT CONTROL
TOP STOP
AUTO LUBE SYSTEM
