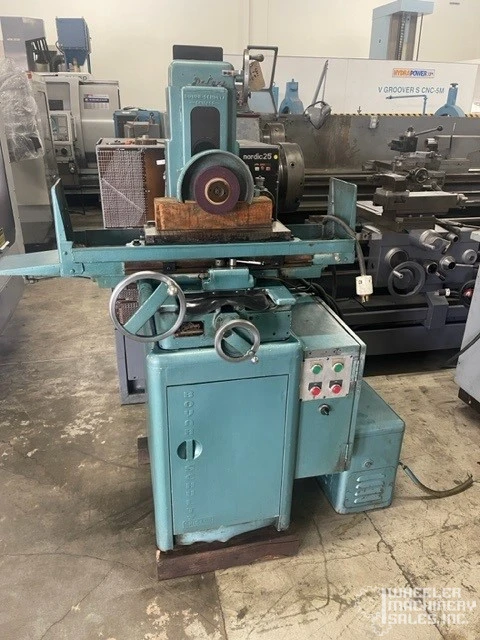

Boyar Schultz 6-18 Challenger Hydraulic Surface Grinder #6737 #2
Have one to sell?
ConditionUsed
1 available
Enhance your grinding capabilities with this used Boyar Schultz 6-18 Challenger Hydraulic Surface Grinder. Featuring a 6" x 18" max chuck, 3450 RPM wheel speed, and automatic crossfeed. Ideal for precision tasks with its reliable 1 HP spindle drive.
Boyar Schultz 6-18 Challenger Hydraulic Surface Grinder #6737 #2
SPECIFICATIONS:
Table Working Surface: 18" x 5-5/8"
Max Chuck Size: 6" x 18"
Max Table Movement (Manual): 19-7/8"
Auto Longitudinal Feed Rate: 0-50 FPM
Max Distance Spindle / Wheel to Table: 0-12" Work Height Under Wheel
Max Wheel Size : 8" x 5/8" x 1.25" Hole
Wheel Speed: 3450 RPM
Crossfeed Travel Auto / Manual: 6-13/16"
Cross Feed Automatic Increments: .001" Manual Handwheel Graduation
Rapid Wheelhead Feed Rate: Manual Wheelhead Feed
Hand Wheelhead Downfeed Increments: .0005"
Crossfeed Motor: Hydraulic Automatic
Spindle Drive: 1 HP
EQUIPPED WITH:
Hydraulic Tank
Automatic Crossfeed
