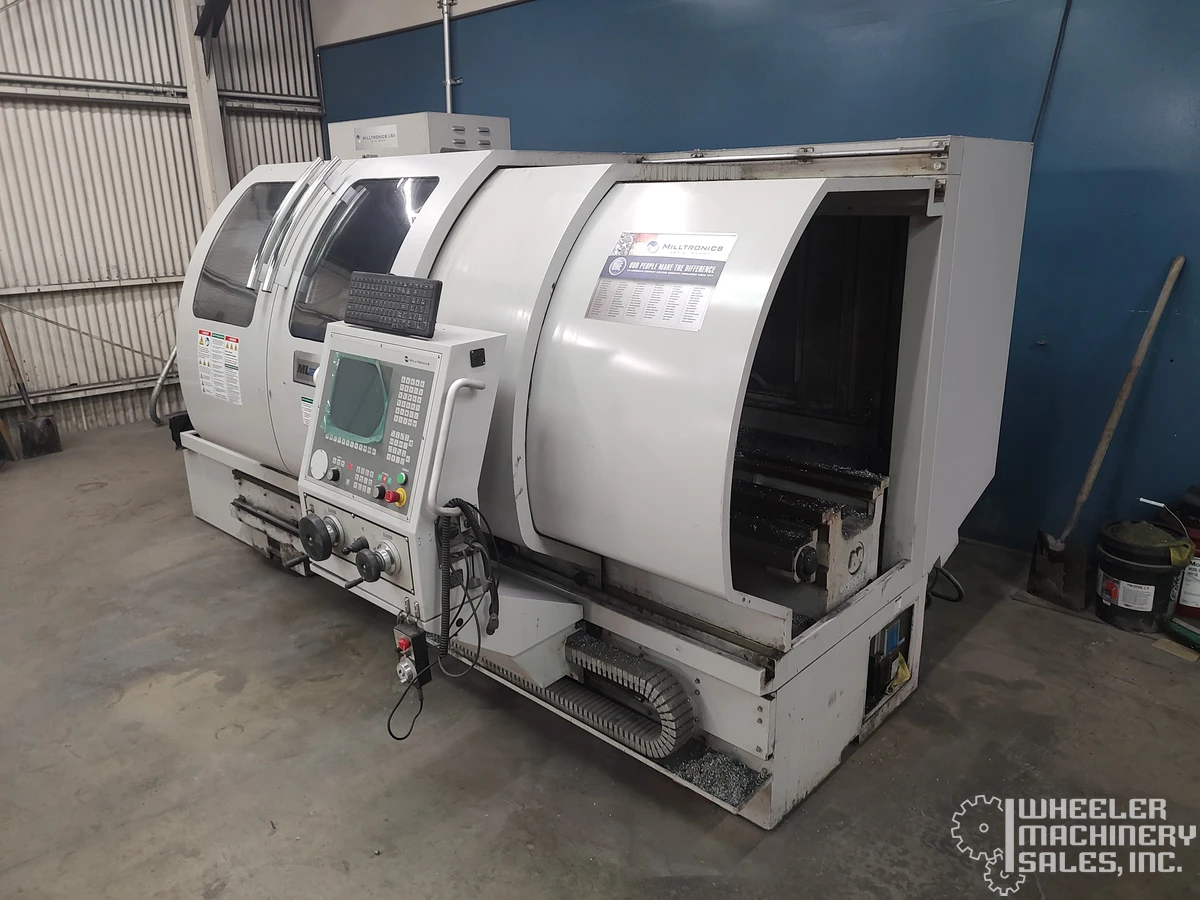

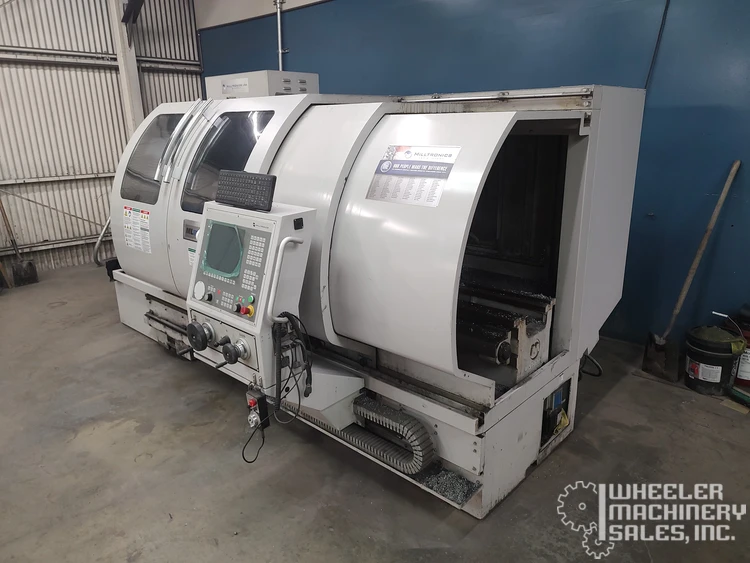

For sale: 2016 Milltronics ML 22/60 Flat Bed CNC Lathe. Featuring 13" X-axis travel, 63.5" Z-axis travel, 23" swing over bed, 2000 RPM spindle, and Milltronics 8200-B CNC control. Equipped with flood coolant, USB port, and full enclosure.
2016 Milltronics ML 22/60 Flat Bed CNC Lathe 22" x 60" #6694 #2
SPECIFICATIONS:
X-Axis Travel: 13"
Z-Axis Travel: 63.5"
Swing over bed: 23"
Swing over gap: 30.3"
Swing over cross slide: 12.1"
Gap distance: 12.75"
Spindle nose: A1-8
Spindle bore: 3.22"
Spindle range: 2000 RPM
AC spindle motor: 24/15 HP
Tailstock quill travel: 6"
Tailstock quill diameter: 3.94"
Tailstock quill taper: MT
Number of tools 8 TRT
Boring Bar Capacity: 1.5"
Tool selection: Bi-Directional
X, Z axis rapid traverse rate: 500 IPM
Max. cutting feed rate: 100 IPM
X axis ball screw diameter: 1.25"
Z axis ball screw diameter: 1.77"
Positioning accuracy: +- 0.00025"
Repeatability: 0.0002"
Axis thrust force X,Z: 2,300 LBS
Machine Height 83"
Floor Space Required (W x D) 143" x83"
Machine Weight 10,000 lbs.
Power required 30 KVA / 80 amps
Voltage required 208-240 Volts / 3 Phase
EQUIPPED WITH:
Milltronics 8200-B series CNC control
10" 3-Jaw Hydraulic Chuck
Solid box way bed construction
2000 RPM spindle
Tailstock
Auto lubrication
Full enclosure w/ sliding doors
3.22" Spindle bore
A1-8 Spindle nose
12" LCD color display
Spindle load meter
Flood coolant
Solid model graphic display
USB Port
Gap bed design
8 Station 1" automatic turret
CD hour meter
=Thread chasing feature
