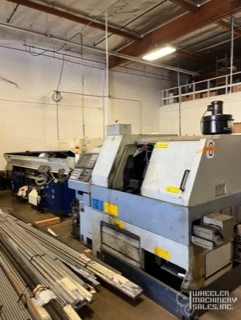

Star SV-20 CNC Swiss Automatic Lathe #6673 #2

Star SV-20 CNC Swiss Automatic Lathe #6673 #2

SPECIFICATIONS:
CNC Control: Fanuc 16T
Max Turning Diameter: 20mm (25/32")
Headstock Stroke: 8"
Main Spindle:
Headstock Spindle Speeds: 500 - 10,000 rpm
Spindle Indexing: .01 deg (full C-axis)
Spindle Motor: 3.7Kw (cont)/5.5kw (30 min) main
Spindle Bore Diameter: 1"
Drilling Capacity:
Stationary Tool: 35/64"
Power Driven Tool: 5/16"
Number of Tools:
Gang Plate: 5 (12mm) Tools (4 tools opt/16mm)
3 Power-driven
Turret: 8 Stations
12mm Tool if 3 tool/station opt
16mm Tool if 1 tool/station opt
Tapping Capacity: Turret M10 x P1.5
Power Driven Tool
Gang Tool Post M6 x P1.0
Milling Capacity: 10mm (25/64")
Max. Die Cutting Capacity: M10 x P1.5
Gang Tool Post Power Driven Tool: 6,000 rpm
Motor: 0.5Kw (servo drive)
Power Consumption: 9 KVA
Backworking Attachment:
Max. Chucking Cap.: 20mm (25/32")
Drilling Capacity: 3/8"
Tapping Capacity: M8 x P1.25
Sup Spindel Indexing: 15 degree
Spindle Speeds: 500 - 10,000 rpm
Sub-spindle motor: 2.2Kw(continuous)/3.7Kw(15min)
Dimensions (approx): 104"l x 55"w x 66"h
Weight (approx): 7,500 lbs.

EQUIPPED WITH:
Imeca Minin Boss 325 CNC Magazine Bar Feed
Coolant Tank
