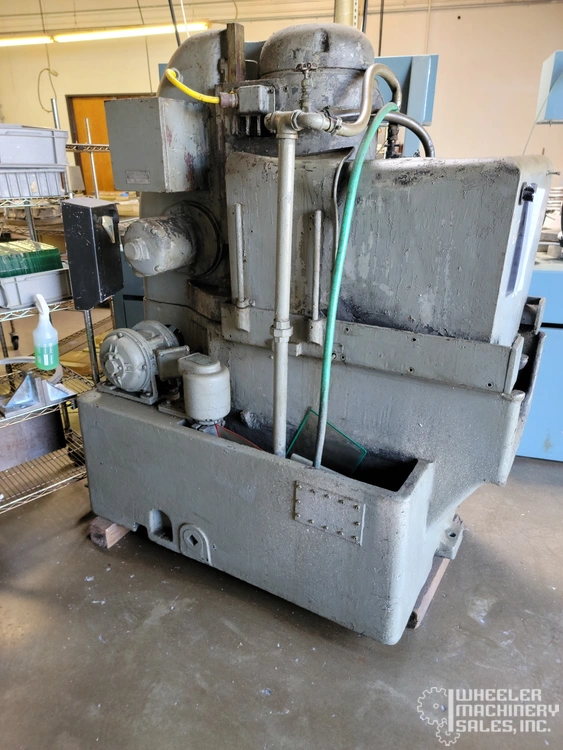

Blanchard 11-16 Vertical Rotary Surface Grinder 16" x 11" #6468 #2
Serial # 4077
CHUCK DIAMETER: 16"
SWING INSIDE GUARDS: 20"
HEIGHT UNDER NEW WHEEL: 7"
MAX. WEIGHT OF WORK LOAD ON CHUCK: 2,000 LBS
GRINDING WHEEL DIAMETER: 11"
WHEEL SPEED: 1,200 RPM
CHUCK SPEEDS: 15 TO 64 RPM
INF. VARIABLE POWER DOWNFEED: 0.003" TO .070 IPM
MOTOR: 15 HP
APPROX. WEIGHT: 5,500 LBS
EQUIPPED WITH:
16" ELECTRO MAGNETIC CHUCK
VARIABLE CHUCK CONTROL
COOLANT SYSTEM
