KELLENBERGER KEL VARIA RS 175/1500 CNC Cylindrical Grinder from 2000. Features include Fanuc control, 350mm grinding diameter, and 1500mm grinding length. Equipped with in-process gaging, Live/Dead workhead, coolant system, and diamond grinding wheel.

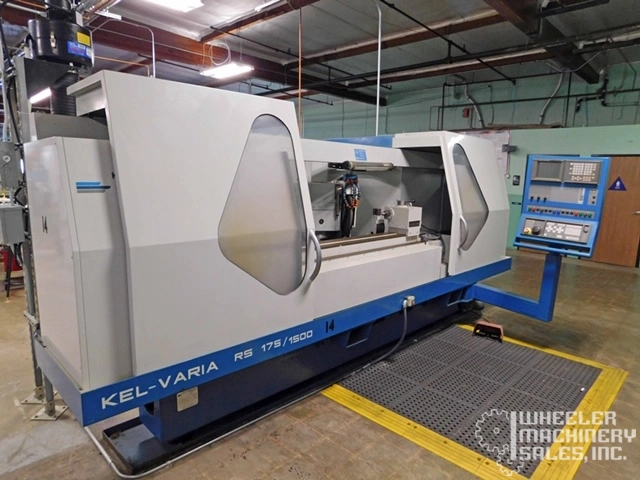

KELLENBERGER KEL VARIA RS 175/1500 CNC UNIVERSAL CYLINDRICAL GRINDER
NEW-2000
Model KEL-VARIA RS 175 X 1500
CNC Control: Fanuc
Technical details
grinding diameter 350 mm
grinding length 1500 mm
centre height 175 mm
control FANUC 18 iT
workpiece spindle head: MK 5
spindle speeds 6 - 600 1/min
spindle speeds: 1.670 / 2.050
workpiece weight 150 kg
travel -x axis 310 mm
travel -z axis 1.650 mm
tailstock quill taper ISO MK 4
quill stroke 50 mm
weight of the machine ca. 6 t
dimensions of the machine ca. 4,6 x 2,1 x 1,9 m
Equipped With:
Wiring for In Process Gaging
Live/Dead Workhead
Coolant System
Diamond Grinding Wheel
