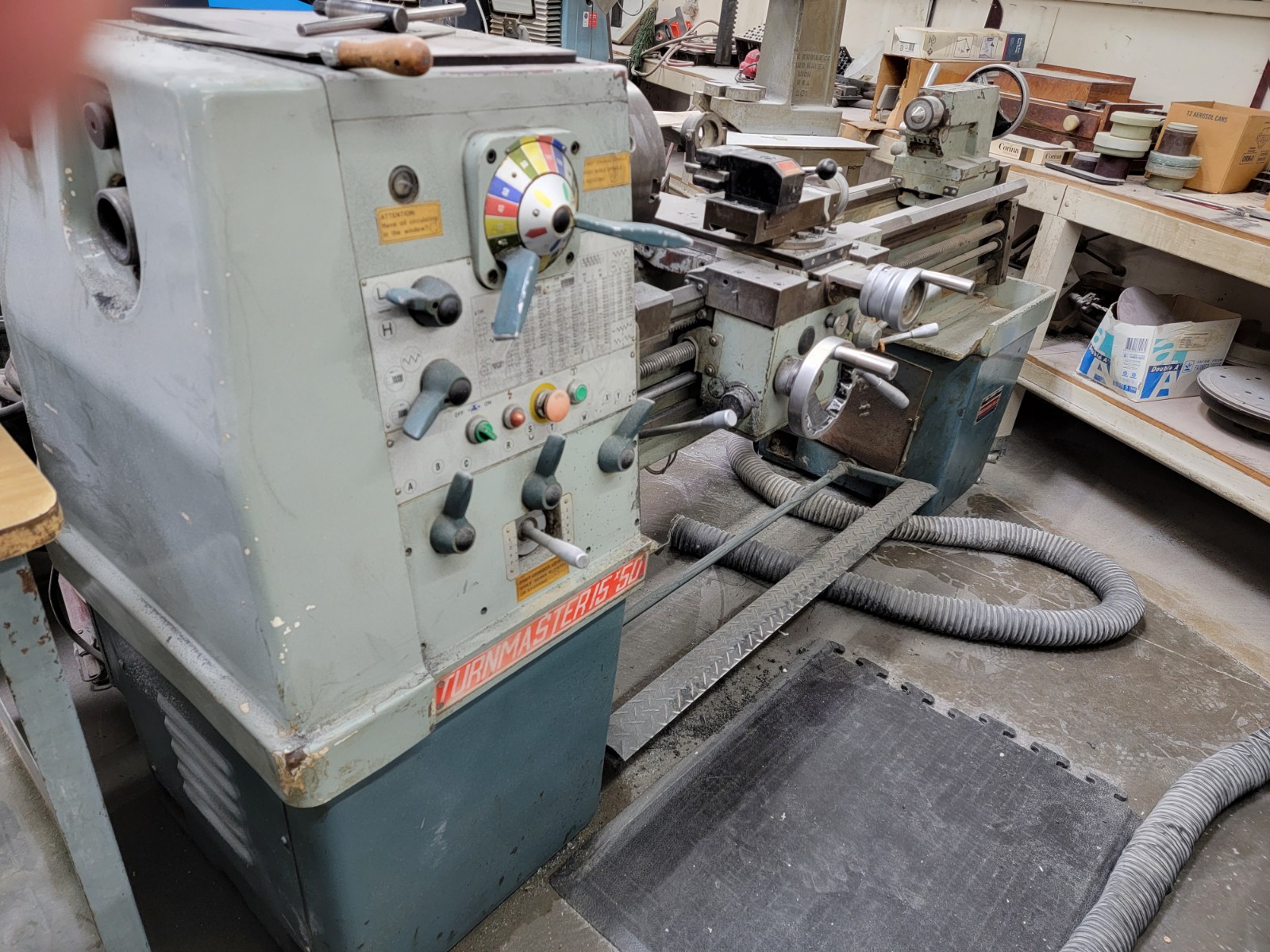

Turnmaster 15x50 Engine Lathe 15"/25" x 50" #6535 #2

Turnmaster 15x50 Engine Lathe 15"/25" x 50" #6535 #2

Swing over bed ways: 15"

Swing In Gap: 25"

Swing Over Cross Slide: 8-1/2"

Distance Between Centers: 50"

Spindle Nose: D1-6 camlock

Spindle Speeds (16): 25-2,000 RPM

Spindle Bore: 2-1/8"

Inch Threading (45): 2-72 TPI

Metric Threading (39): 0.2 – 14mm

Inch Feeds (15): 0.0015 – 0.040 IPR

Cross Slide Travel: 8-1/8"

Motor: 7.5HP

Approximate Dimensions: 98"LR x 40"FB x 52"H

Approximate Weight: 3,000 Lbs.

Equipped With:

Newall DP90D Digital Readout System

3 Jaw Chuck

Taper Attachment

KDK Tool Post With 1 Holder

Micrometer Bed Stop

Live Center

Coolant System
