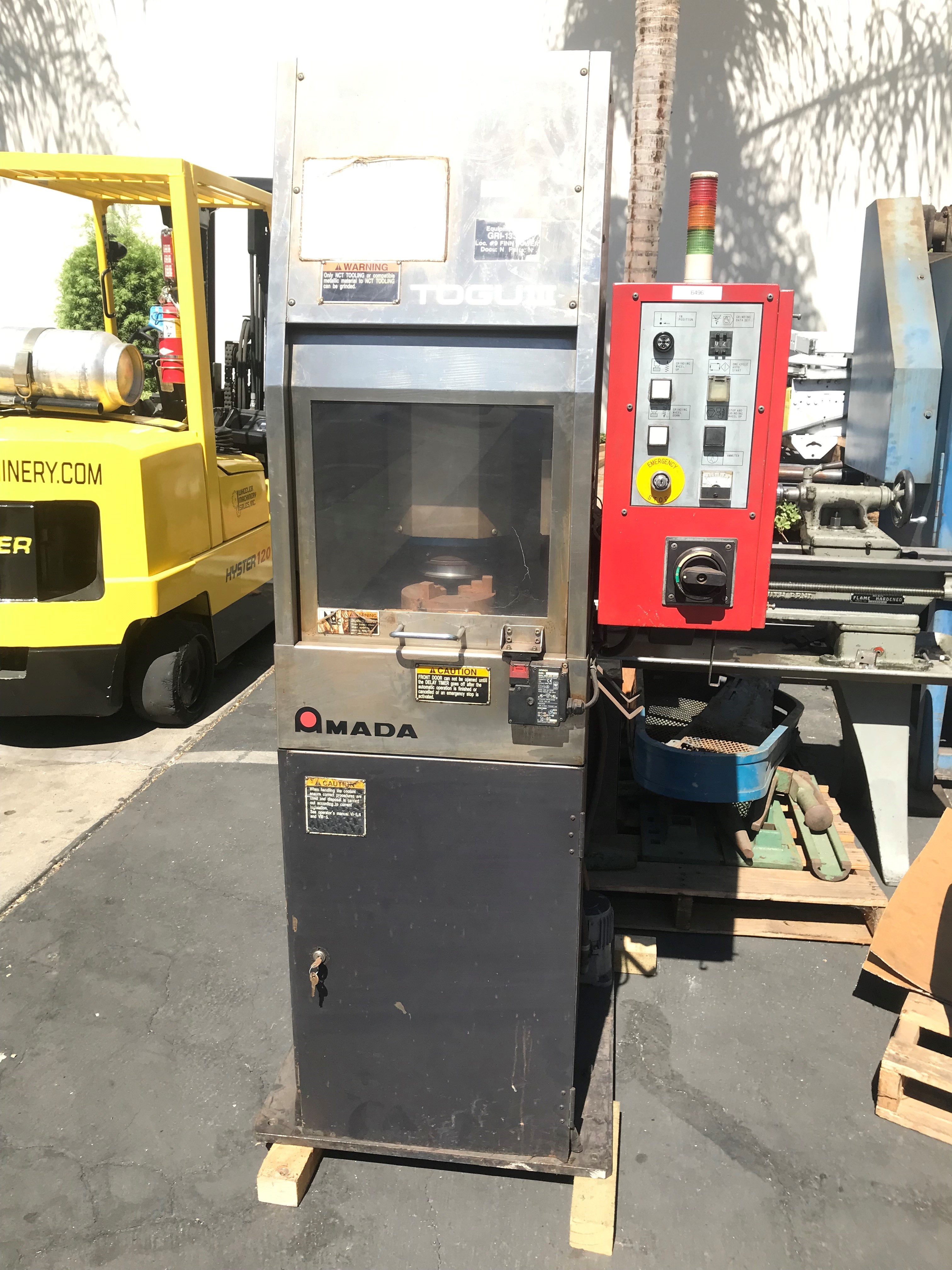

Amada Togu III Automatic Punch & Die Grinder 6.30" #6496 #2
Have one to sell?
ConditionUsed
1 available
Amada Togu III Automatic Punch & Die Grinder, model from 2000, perfect for precise tool maintenance with a 6.30" tool size, 2 HP motor, and 3000 RPM speed. Includes a 6.5" three-jaw chuck and coolant system. Compact design, weighs 1,058 lbs.
Amada Togu III Automatic Punch & Die Grinder 6.30" #6496 #2
SPECIFICATIONS:
MAX. DIAMETER TOOL SIZE: 6.30"
MAX. GRINDING: 0.39"
MAIN AXIS MOTOR: 2 HP
MAIN AXIS ROTATION SPEED: 3,000 RPM
MAIN AXIS TRAVEL: 9.45"
MAIN AXIS FEED MOTOR (SERVO): 0.05 HP
MAIN AXIS FEED SPEED-HIGH: 23.6 IPM
MAIN AXIS FEED SPEED-MIDDLE: 2.36 IPM
MAIN AXIS FEED SPEED-LOW: 0.002 IPM
TABLE MOTOR: 0.134 HP
TABLE ROTATION SPEED: 72 RPM
COOLANT WATER PUMP MOTOR: 0.08 HP
COOLING WATER PUMP MOTOR FLOW: 0.9 CFM
DIMENSIONS: 73" H X 33" W X 31" F-B
MACHINE WEIGHT: 1,058 LBS
EQUIPPED WITH:
6.5" 3 Jaw Chuck
Coolant System
