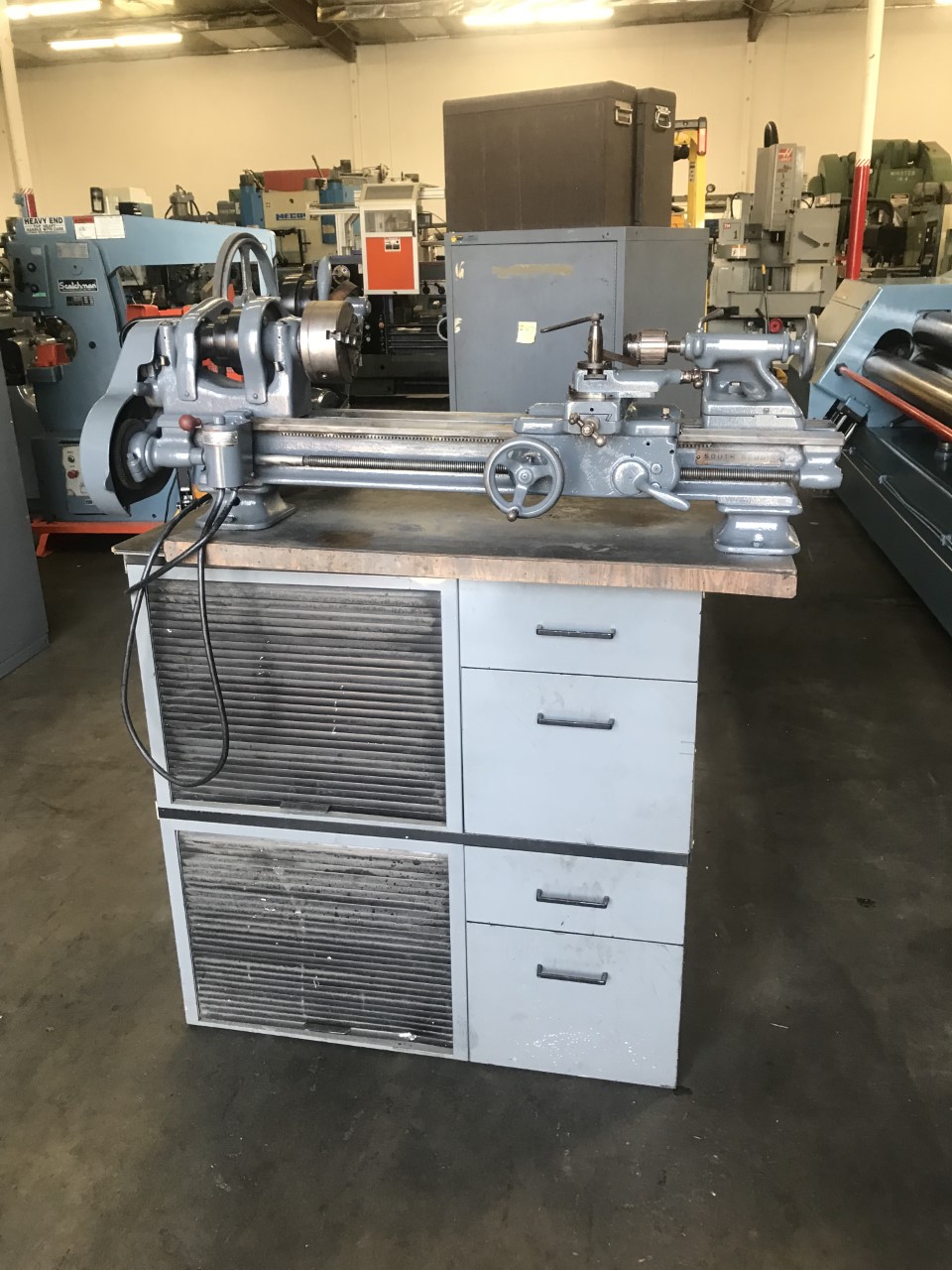

South Bend Model C Bench Lathe 9" x 22" #6177
works but leather belt was really dry and broke. Needs the lace repaired or new belt.
Swing Over Bed: 9"
Swing Over Cross Slide: 5 1/2"
Distance Between Centers: 22"
Spindle Speeds(6): 41- 658 RPM
Spindle Nose: 3/4"- 8
Hole Through Spindle: 3/4"
Cross Slide Travel: 5 7/8"
Feeds: 0.0021" - 0.0156" IPR
Threads:
Inch: 4 - 160 TPI
Tailstock Taper: #2 MT
Tailstock Quill Travel: 2 1/8"
Motor:1/3 HP Single Phase
Dimensions (L x W x H): 80" x 28" x 52"
Weight: 1,000 Lbs.
Equipped With:
3 Jaw Chuck
Tool Post
Drill Chuck
Cabinet Stand
