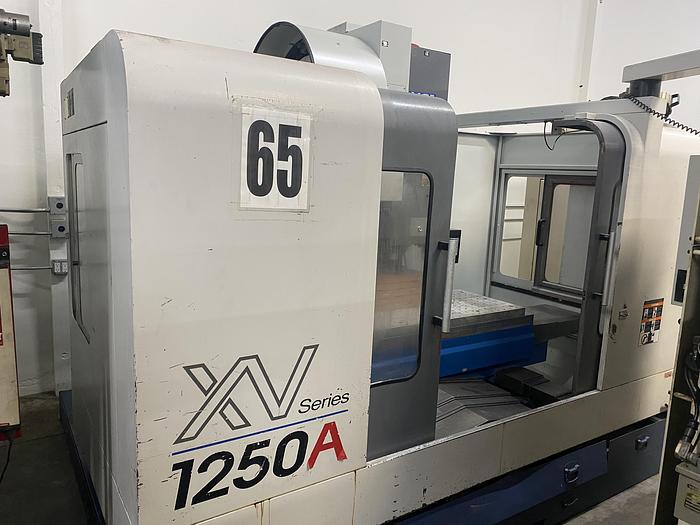

SUPERMAX / YCI MODEL XV-1250A CNC VERTICAL MACHINING CENTER 50" x 20" x 21" #6051 #2

SUPERMAX / YCI MODEL XV-1250A CNC VERTICAL MACHINING CENTER 50" x 20" x 21" #6051 #2

Serial # 107003

Specifications:

MAX LONGITUDINAL TRAVEL (X) AXIS: 50"

MAX CROSS TRAVEL (Y) AXIS: 20.5"

MAX HEAD TRAVEL (Z) AXIS: 21.3"

SPINDLE SPEED: 45 - 1,000 RPM

SPINDLE TAPER: CT-40

TABLE SIZE: 53" x 20.5"

MAX TABLE LOAD: 2,200 LBS

DISTANCE, TABLE TO SPINDLE: 4.1" - 25.4"

DISTANCE, SPINDLE CENTER TO COLUMN SURFACE: 22.8"

CUTTING FEED RATES X, Y, & Z: 0.04 - 394 IPM

RAPID FEED RATES X, Y, & Z: 945 IPM

SPINDLE MOTOR: 15 HP

ATC CAPACITY - ARM TYPE: 24

MAX TOOL DIAMETER: 3"

MAX TOOL DIAMETER WITHOUT ADJACENT TOOLS: 5.1"

MAX TOOL LENGTH: 11.8"

MAX TOOL WEIGHT: 13.2 LBS

.DIMENSIONS (APPROX): 122" x 111" x 125"

WEIGHT (APPROX)l:14,770 LBS.

Equipped With:

FANUC MXP 200i CNC CONTROL WITH COLOR DISPLAY, 1280M STORAGE, AI NANO

24 STATION ARM STYLE TOOL CHANGER

HAND HELD PENDANT CONTROLLER

RIGID TAPPING

COOLANT SKIMMER WHEEL

CHIP CONVEYOR - LIFT UP TYPE

RS-232 PORT & ETHERNET

DIRECT DRIVE INLINE SPINDLE/MOTOR DESIGN

THK LINEAR GUIDERAIL CONSTRUCTION
